XiVision WiFi HaLow Wireless Bridge (Enhanced Version) - 3km Long-Distance Transmission | Faster Speed & Stronger Penetration
XiVision WiFi HaLow Wireless Bridge (Enhanced Version) - 3km Long-Distance Transmission | Faster Speed & Stronger Penetration
Regular price
$269.40 USD
Regular price
Sale price
$269.40 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Notice：We provide 3 frequencies USA: 902-928MHz EU: 863-868MHz Japan: 916.5-927.5MHz. We will send the wifi Halow extender with the corresponding frequency according to the country/region where the customer orders. If you have special frequencies, please contact us
| Parameter | Description |
| Communication protocol | IEEE 802.11ah |
| Frequency range | 902MHz-928MHz |
| Communication bandwidth | 8MHz |
| Data rate | Maximum 16Mbps |
| Receiver sensitivity |
1M PPDU MCS=10-105dbm |

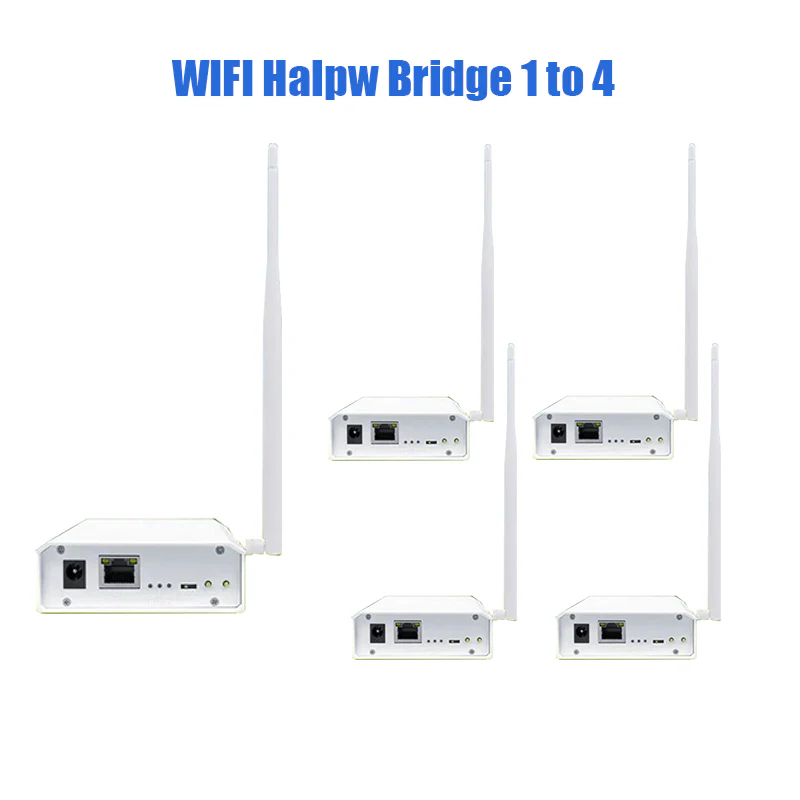

| Number of network nodes supported | supported Up to 31 access points |
| Transmit power | 33dBm 2W |
| Debugging method BPSK | BPSK, QPSK, QAM16 or QAM64 |
| Transmission distance |
3km line of sight (5Mbps rate) 300m non - line of sight |
| Security specification | WPA2 - PSK |
| Encryption method | AES |

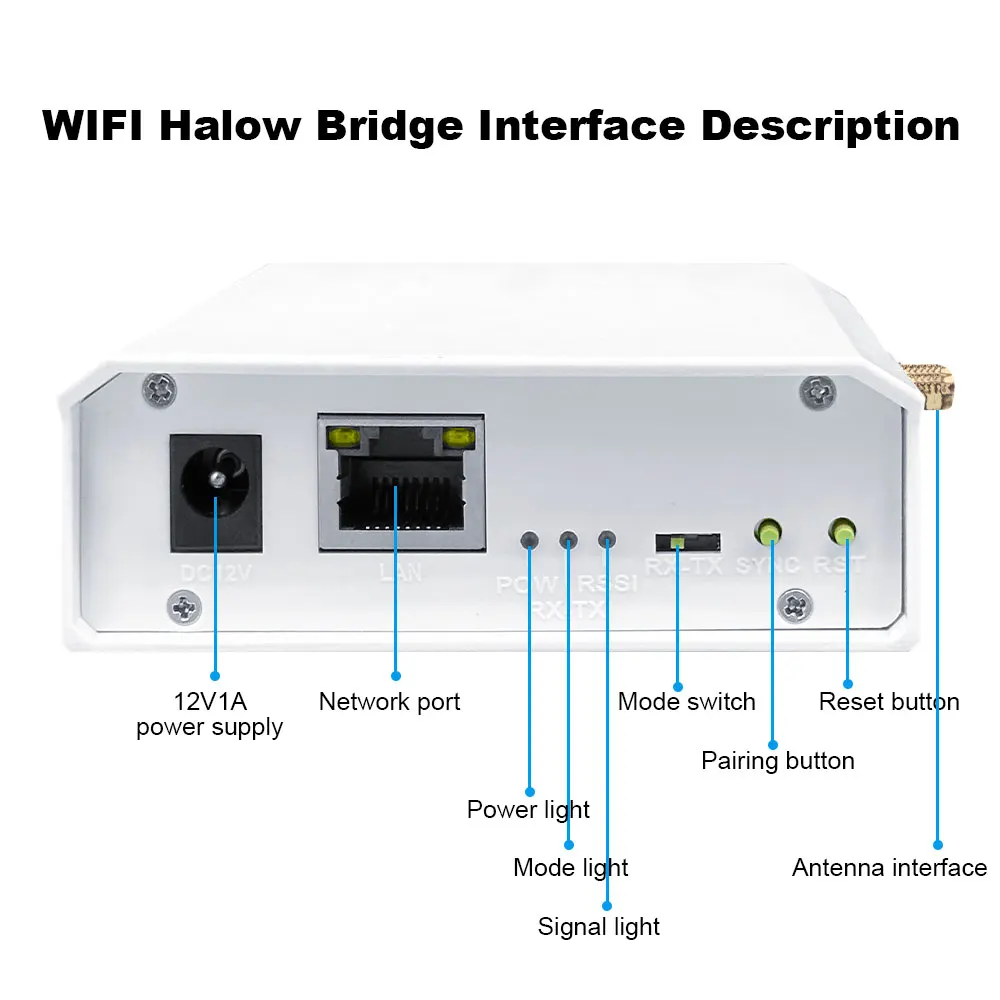

| Network port | 10/100Mbps |
| Power supply | DC12V/1A |
| LED light indication | Power indicator Mode indicator Connection indicator |
| Antenna interface | SMA external thread inner hole |
| Input voltage | 12V1A |
| Maximum current | 0.6A/12V (full time slot constant transmission) |
| Average power consumption | 5W (normal working mode) |
| Operating temperature | - 20℃ ~ 70℃ |
| Storage temperature | - 30℃ ~ 80℃ |
| Operating humidity | 10% - 90% |
| Storage humidity | 5% - 95% |
| Specifications | External 2db omnidirectional antenna |
| Length | 19cm |

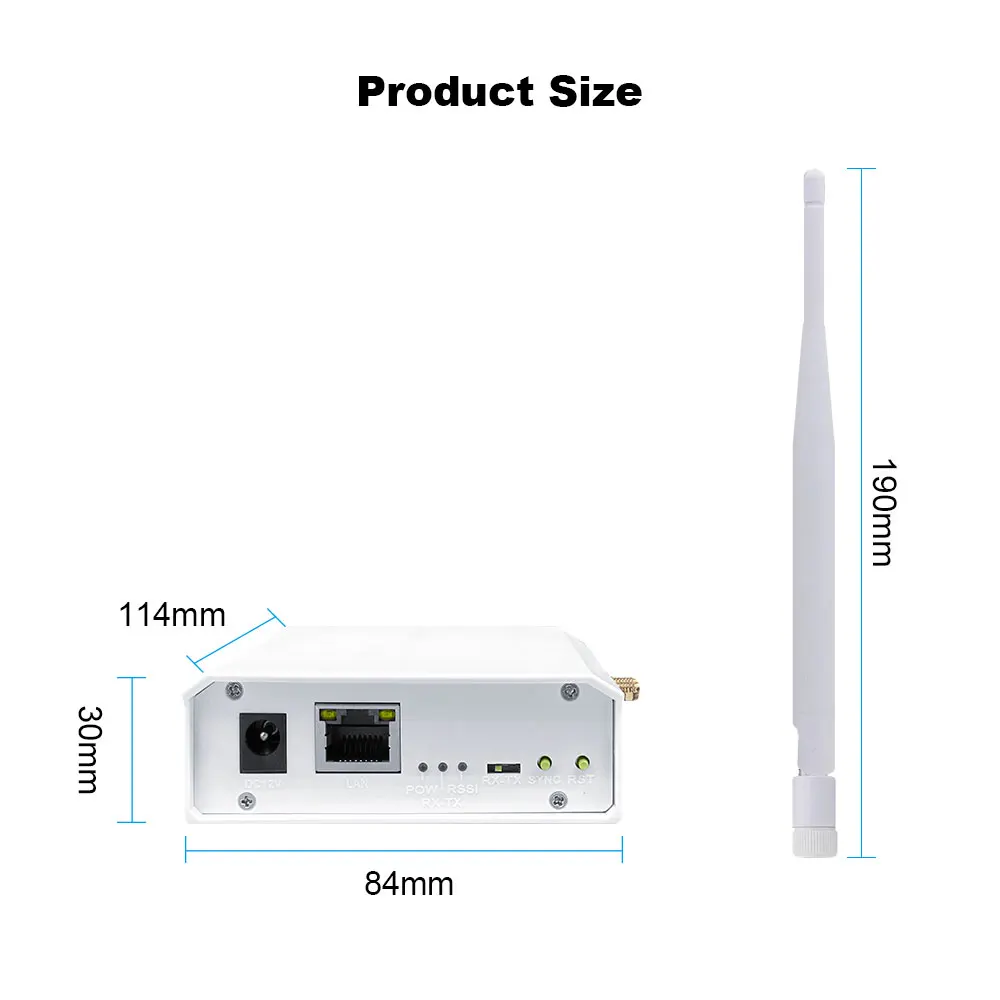

| Product size | 114x84x30mm (excluding antenna) |
| Product weight | 105g |
