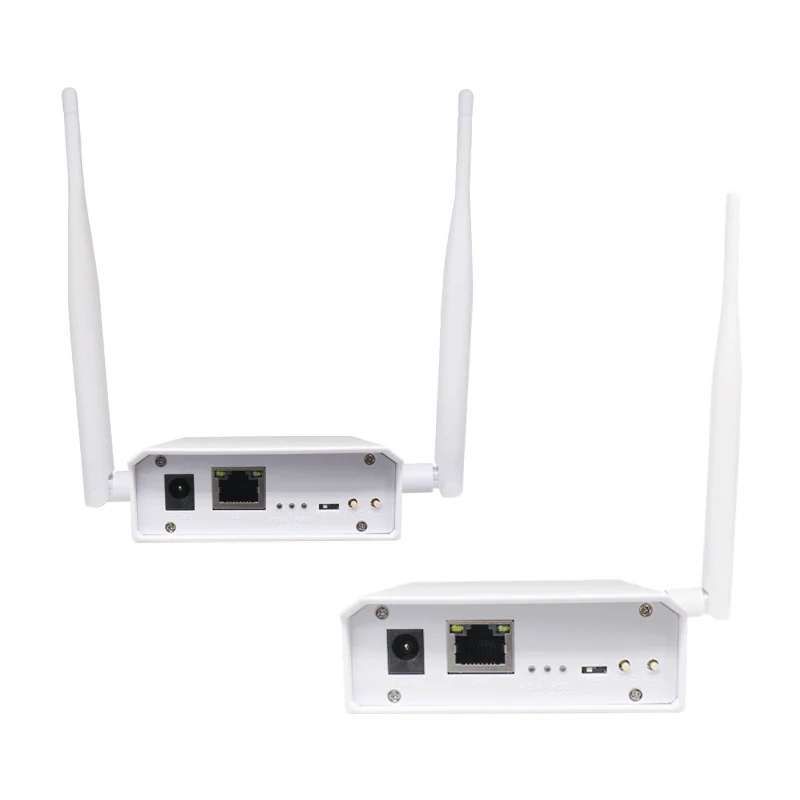

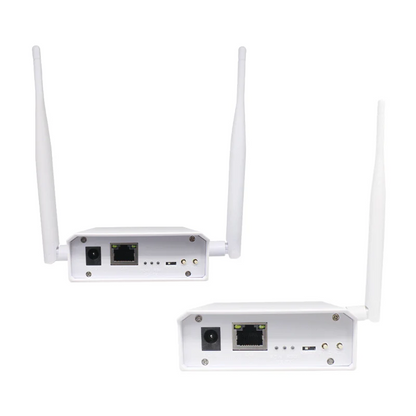

XiVision Dual AntennaHaLow wireless bridge extender 1km distance high gain Wifi large range fast transmission speed strong penetration
XiVision Dual AntennaHaLow wireless bridge extender 1km distance high gain Wifi large range fast transmission speed strong penetration
Regular price
$68.99 USD
Regular price
Sale price
$68.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Notice：We provide 3 frequencies USA: 902-928MHz EU: 863-868MHz Japan: 916.5-927.5MHz. We will send the wifi Halow extender with the corresponding frequency according to the country/region where the customer orders. If you have special frequencies, please contact us
frequency setting instructions
|
Parameter
|
Description
|
|
Communication protocol
|
IEEE 802.11ah |
|
Frequency range
|
902MHz-928MHz
|
|
Communication bandwidth
|
8MHz
|
|
Data rate
|
Maximum 16Mbps
|
|
Receiver sensitivity
|
1M PPDU MCS=10-105dbm
8M PPDU MCS=0 -95dbm
8M PPDU MCS=7 -81db
|
|

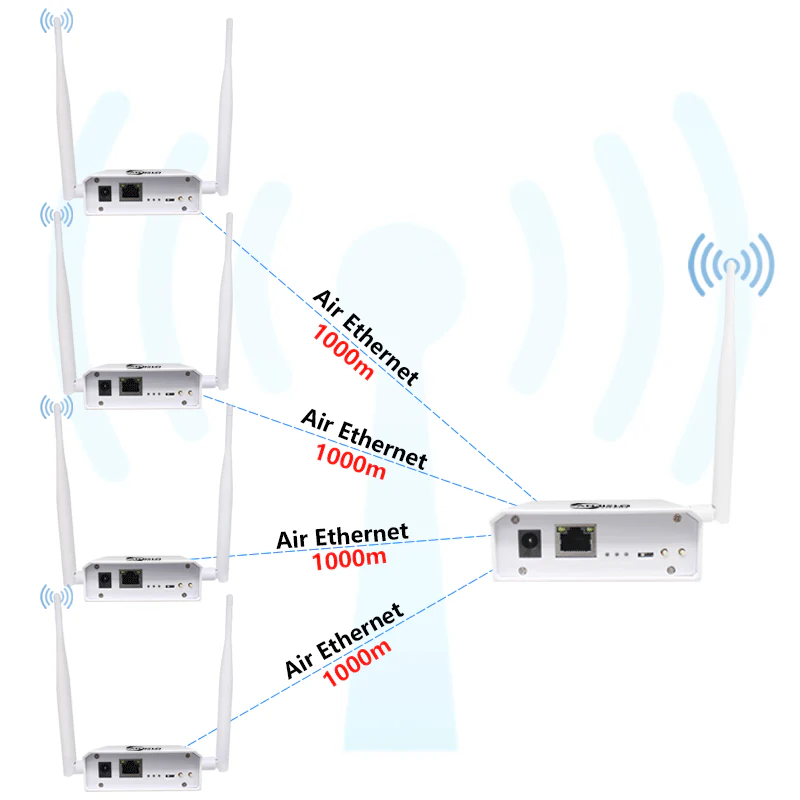

Number ofnetwork nodes
|
supported Up to 8 access points
|
|
Transmit power
|
20dBm
|
|
Debugging method
|
BPSK,QPSK,QAM16 or QAM64
|
|

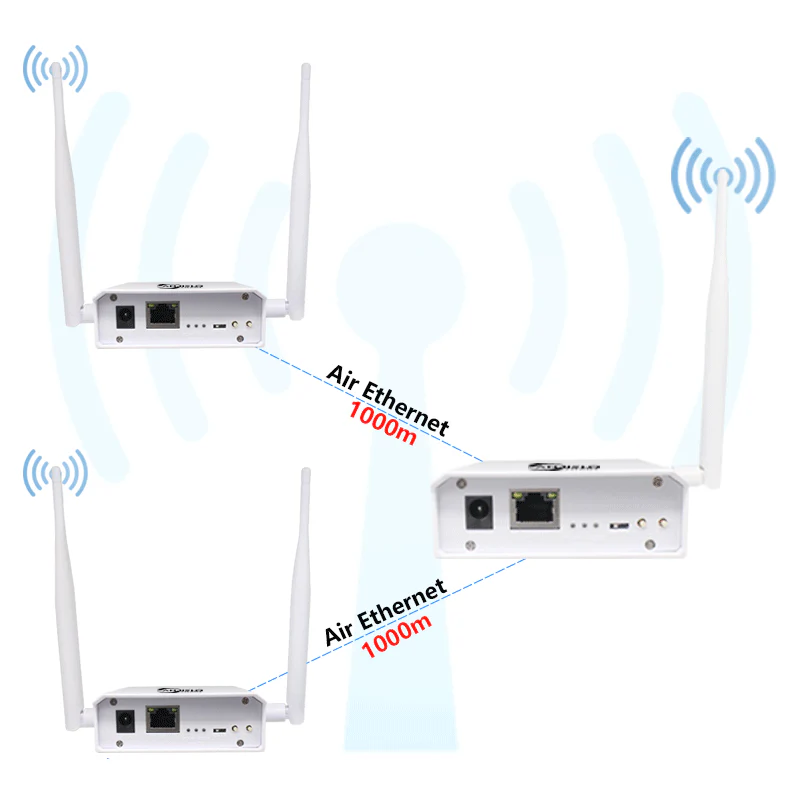

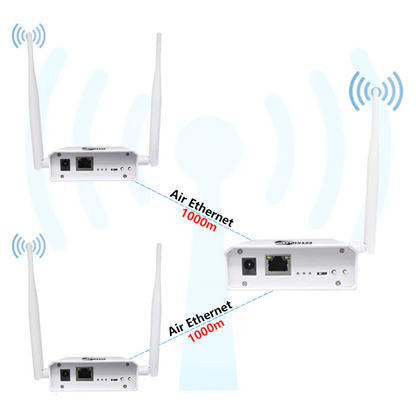

Transmission distance
|
1km line of sight (5Mbps rate)
800m non-line of sight
|
|
Security specification
|
WPA2-PSK
|
|
Encryption method
|
AES
|
|
Network port
|
10/100Mbps
|
|
Power supply
|
DC12V/1A
|
|
LED light indication
|
Power indicator
Mode indicator
Connection indicator
|
|
Antenna interface
|
SMA external thread inner hole
|
|
Inputvoltage
|
5V1A
|
|
Maximum current
|
0.6A/12V(full time slot constant transmission)
|
|
Average power consumption
|
5W(normal working mode)
|
|
Operating temperature
|
-20℃~70℃
|
|
Storage temperature
|
-30℃~80℃
|
|
Operating humidity
|
10%~90%
|
|
Storage humidity
|
5%~95%
|
|
Specifications
|
External 2db omnidirectional antenna
|
|
Length
|
19cm
|
|
Product size
|
114x84x30mm(excluding antenna)
|
|
Product size
|
105g
|
