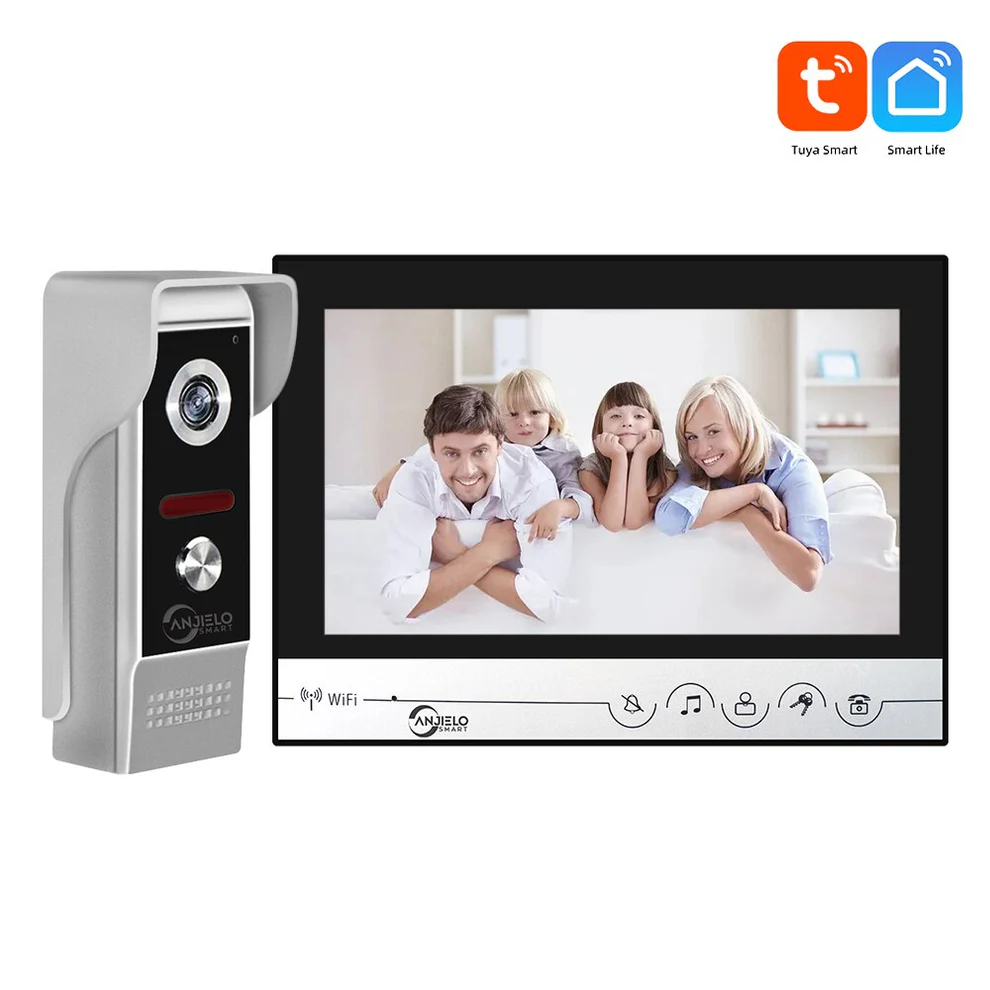

Tuya Video Intercom For The Apartment Door Peephole Infrared Camera Ring Doorbell 9 Inch Lcd Color Screen Ringtones To Choose

Reminder: a single indoor only screen cannot be used, it is recommended to order a complete set with a doorbell. Or consult our customer service to verify product information.

Outdoor Unit:

* 720P camera lets you see clearly who is at the door;
* The aluminum alloy material and rainproof cover provide a good protection for it.

* Built-in led lights enhance the night view,and is clearly visible at night.

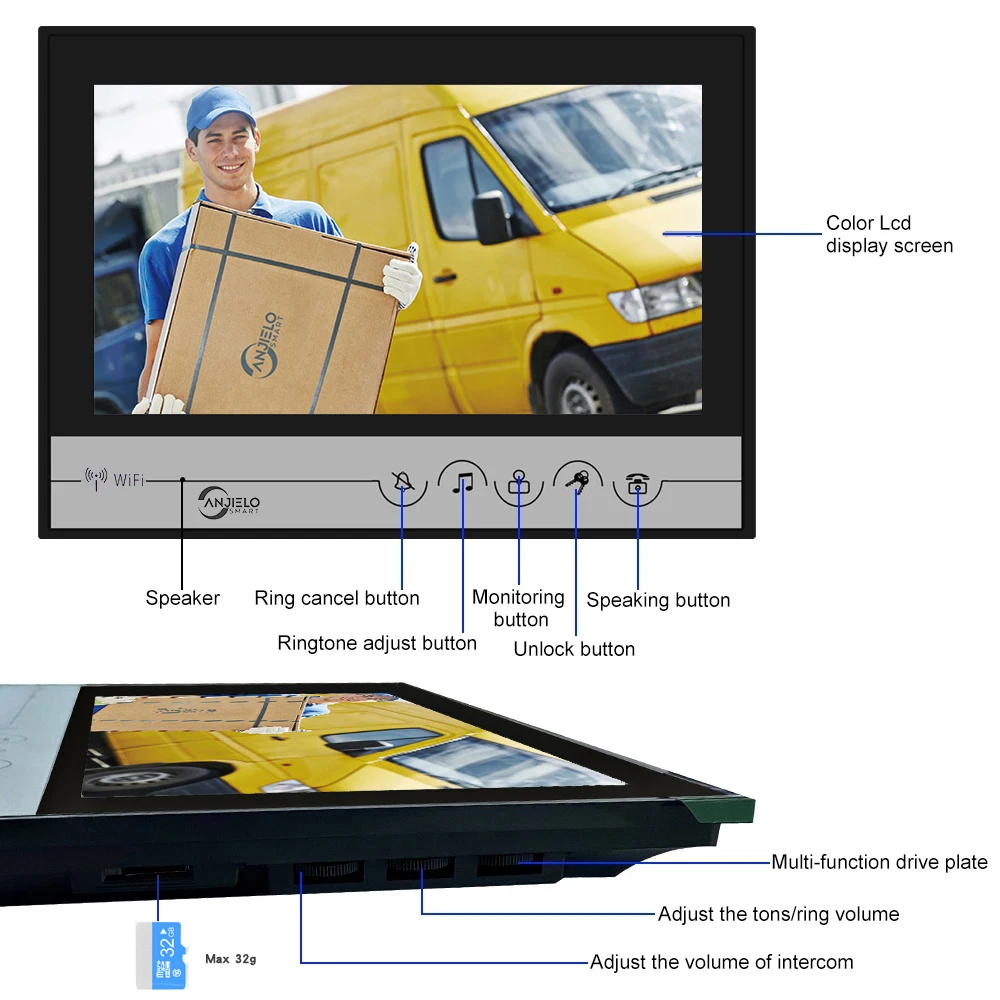

Indoor Monitor:
* A 9 inch LCD color screen gives you great view,silvercolor makes it look more fashion.

* It is a 4-wire system, the installation is very easy, both of the outdoor unit and indoor unit have plug-and-play connector.It is a great system for home intercom and security!

* It supportsHandsfree Dual-way Intercom, Indoor Monitoring, Indoor Unlocking, Mute Mode,change ring(total 25 song ring can choose).Can adjusted color/light/ Voice volume Three (on the right side)

Dual-way Intercom and Indoor Monitor

When someone press the call button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside. Then you can press the response button on monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion. When the monitor in standby mode, you can see what's going on outside by press monitoring button.

One-button unlock

Householders don't  rsquot have to run to the door you can remotely unlock by the indoor unit directly.

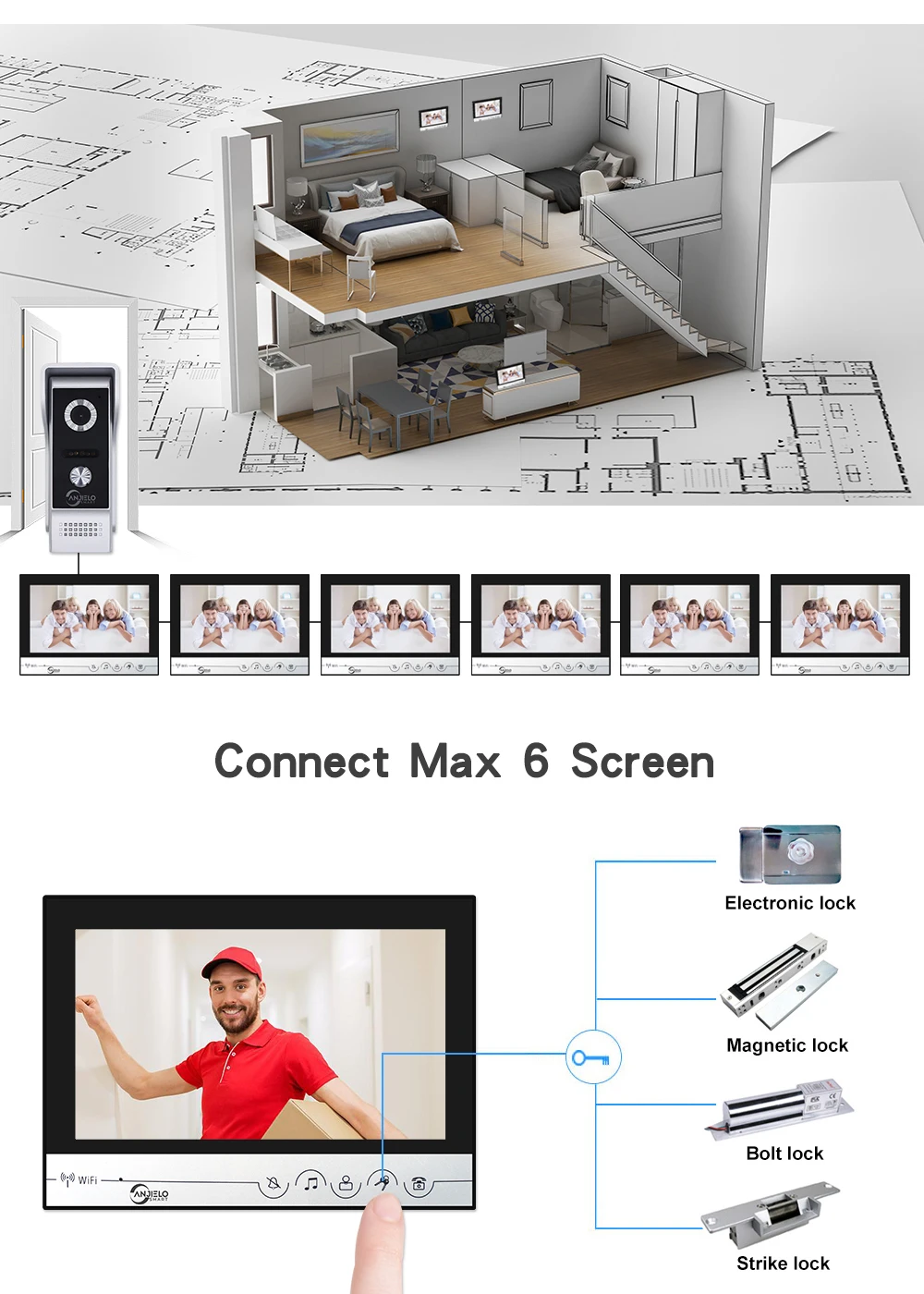

This door phone can work with 12VDC electrical lock. With this function, it will bring great convenience for you and your family members.
(Please note the electrical lock at below photo is not included, if you need it, please contact us)

(Note:When connecting the electric bolt lock,Electric strike lock and magnetic lock, it must be used with the access control power supply)

It allows you to see clearly who is knocking the door even at night.Make sure your family is safe.

Waterproof and Dust-proof

The outdoor camera is attached withaluminum rain proof coverto prevent the water and protect the outdoor camera from damage.

Clear Sound Quality

The audio intercom uses a telephone general chip design,speech sound is clear and strong anti-interference ability and has low failure rate

Connection cable standards

With 4 wires system connection.Using 4-cores cable to connect the camera and monitor.

The max distance is up to 100 meters(330ft).Different distance,use different diameter cable,please check the following from to choose correspnding cable.(We will sent 5 meters cable to you to test,for the longer cable,need to buy by yourself when installing)

(Please note the locks, power supply, and exit button at below photo is not included, if you need, please feel free to contact us)

Wiring diagram 1

Packing list

1x 9 Inch indoor unit

1x Outdoor camera

1x Adapter

1x Indoor unit wall carrier

1x 4-core/5-core connection cable

1x 2-core connection cable

1x Packing of screws

1x English manual

1x Test cable
