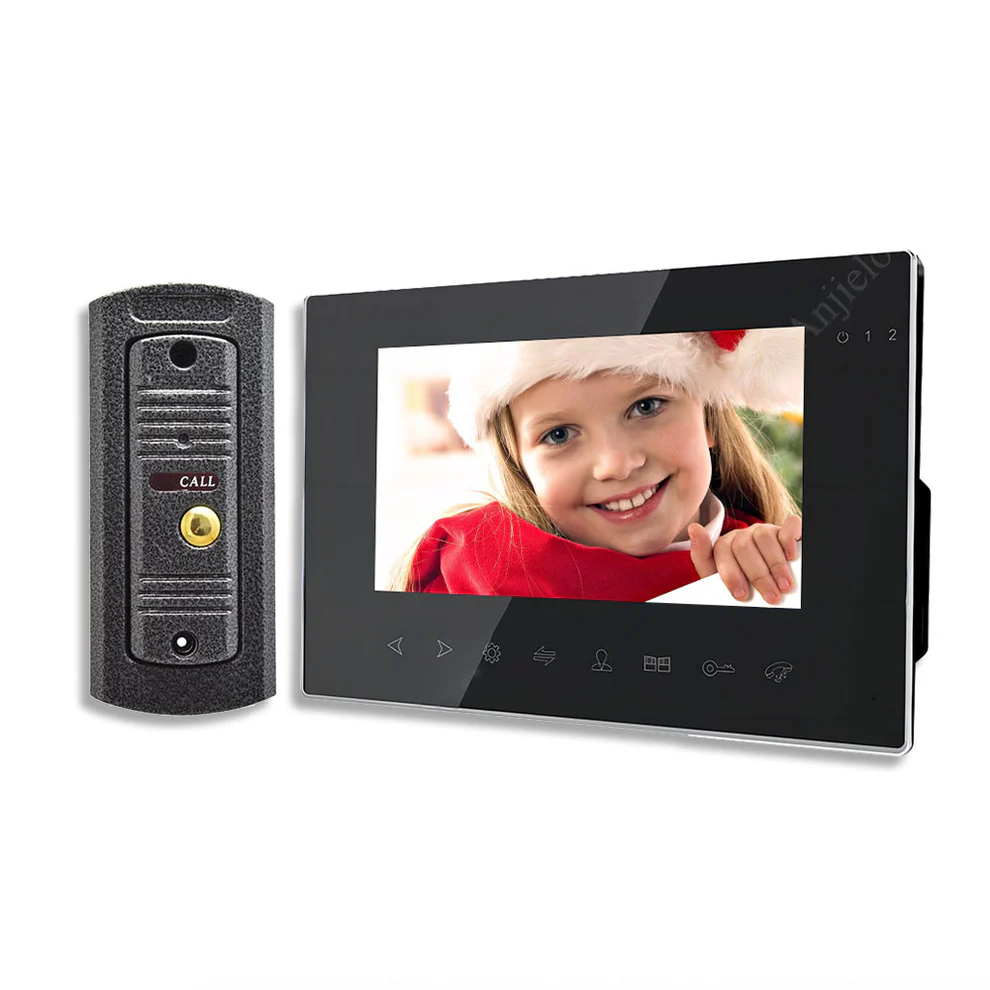

Tuya 7 inch WiFi Video Intercom System AHD Wired Doorbell Camera Remote Motion Detection
Tuya 7 inch WiFi Video Intercom System AHD Wired Doorbell Camera Remote Motion Detection
Couldn't load pickup availability
Notice:
Our Product Just Works Well With Our Own Intercom System. At Present. We Could Not Guarantee It Could Be Compatible With Other Brand Indoor Monitor/Outdoor Camera. If You Need To Connect Other System, Please Contact Us For Technical Support Before Buying.
The monitor has white color and black color, you can leave message what color you need when you place order.
♦ 7 inches LCD HD screen, resolution is1024*600, this kit come with 720P/1.0MP HD outdoor camera. Clearer viewing.
♦ Customize ringtone and wallpaper.
♦ Point to point transfer call to any indoor monitor.
♦ Support play HD movie by indoor monitor.
♦ Maximum support connect with 2 outdoor call panels + analog 2 cameras + 6 monitors in one system.
♦ Compatible with most models of CVBS or AHD doorbell, max 960P/1.3MP doorbell, and camera input.
♦ Unlock door function.
♦ Motion detection without the extra device (controlled by software).
♦ Call Panel and monitor volume could be adjusted.
♦ IR LED supply you with clear night vision.
♦ Support Tuya smart / Smart Life APP remote control the door, view and record.
Never Miss a Visitor
This IP video door phone system lets you answer your door by smartphone from anywhere.
There is a built-in HD camera in outdoor with a night vision function, providing a clear view from your front door day and night.
When somebody calls outdoor, your monitor and smartphone will ring at the same time.
| Answering Mode: Hands-free | Camera Sensor type: CMOS |
| Display Size: 7 | Display Screen Type: Color |
| Material: Acrylic Wire Drawing Panel | Viewing Angle (°): 65 |
| Size: 7 Inch Video Intercom System | Plug Type: AU Plug |
| Plug Type: EU Plug | Plug Type: US Plug |
| Plug Type: UK Plug | Power: External power DC12V |
| Model Number: P201S1M714B1-86 | IP Camera Interface: No |
| Zone Input: 4 | Smart Home Interface: No |
| Kit Configuration: One to One video doorphone | Installation: Wall Mounting |
| Resolution: > 420 TV Line | Doorbell: Yes |
| Access Control: None | Sensor Size(Inch): 1/3 |
| Technology: Digital | Camera: Color |
| Type: Intercom System | Power: 220v |
| Name: Video Intercom, Video Door Phone, Video Doorbell | Video Languages: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani |
| Intercom Mode: Hands-free Dual communication | Memory: 86 Pictures, Support Max.32G SD Card |
| Resolution: 800(H)*3(RGB)*480(V), 3.7MM HD Pinhole Lens | Conversation Duration: 120s |
| Support: 2 call panel + 4 indoor monitor+ 2 Analog camera & 2 PIR | Volume: Adjustable Day/Night |
| Remote View: Smartphone via App | Power Source: Outdoor Doorbell Powered By Indoor Monitor |
| Waterproof: IP65 Aluminum Panel | Camera Sensor: 1/3"CMOS, 1200TVL |
The System Supports twelve Different Languages: English, Russian, Ukrainian, Polish, Arabic, Portuguese, Azerbaijani, Turkish, French, Spanish, German, and simplified Chinese.
Handsfree Dual-way Intercom
Communication between the indoor monitor and the outdoor camera is supported. Let you know easily what the visitor is talking about.

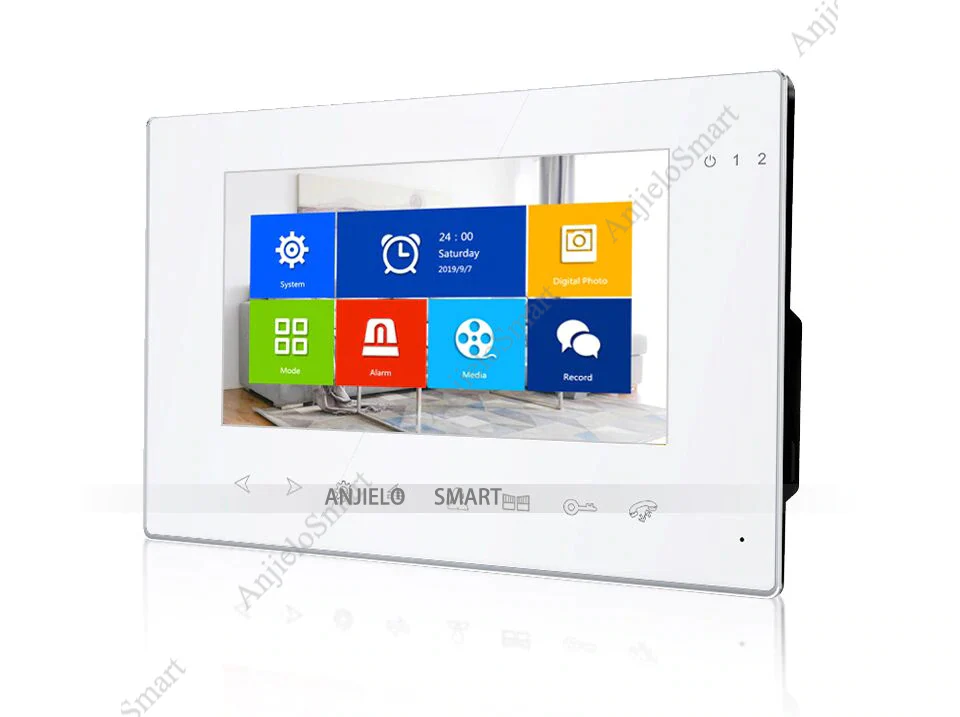

Clock & Date Mode
The latest software is the monitor standby time. If you did not operate the monitor for 1 minute and the time will not be displayed on the monitor. it can protect the life of the screen.

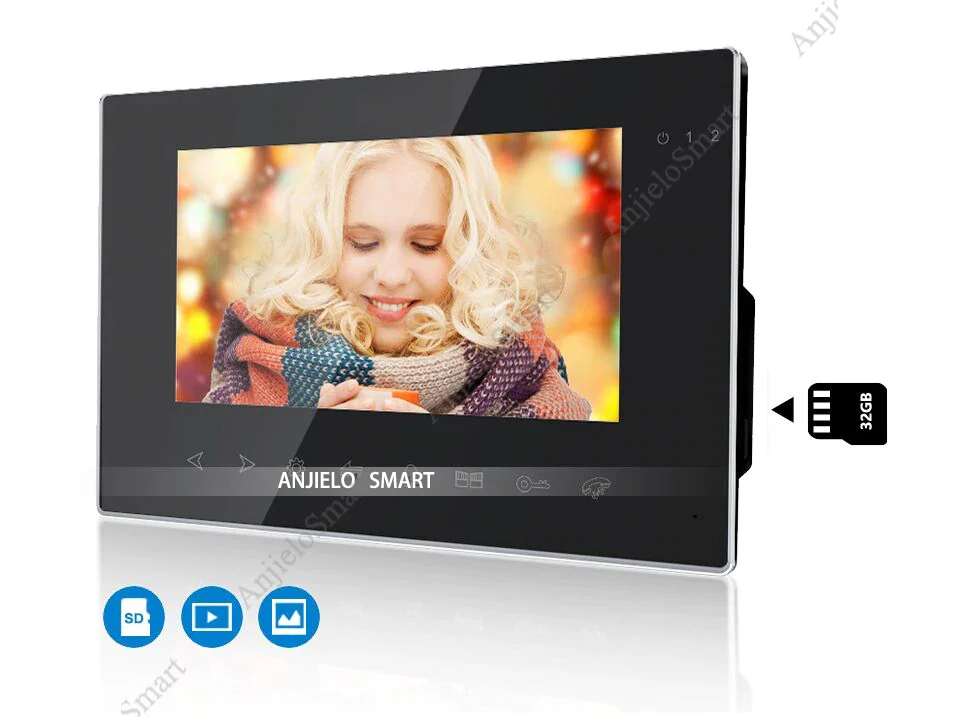

Video or Picture Record, SD Card Supported (Not Included)
When Someone Rings The Doorbell, The Monitor Inserted With SD Card Will Record Picture or Video Automatically. If The SD Card Doesn't Apply, The Monitor Will Just Only Record Picture. The Built-in Memory Could Save 86 Pictures, With SD Card, You Can Set The Recording Mode To Video. When The SD Card Is Fulled, The Earliest Recorded Video Will Be Deleted Automatically.

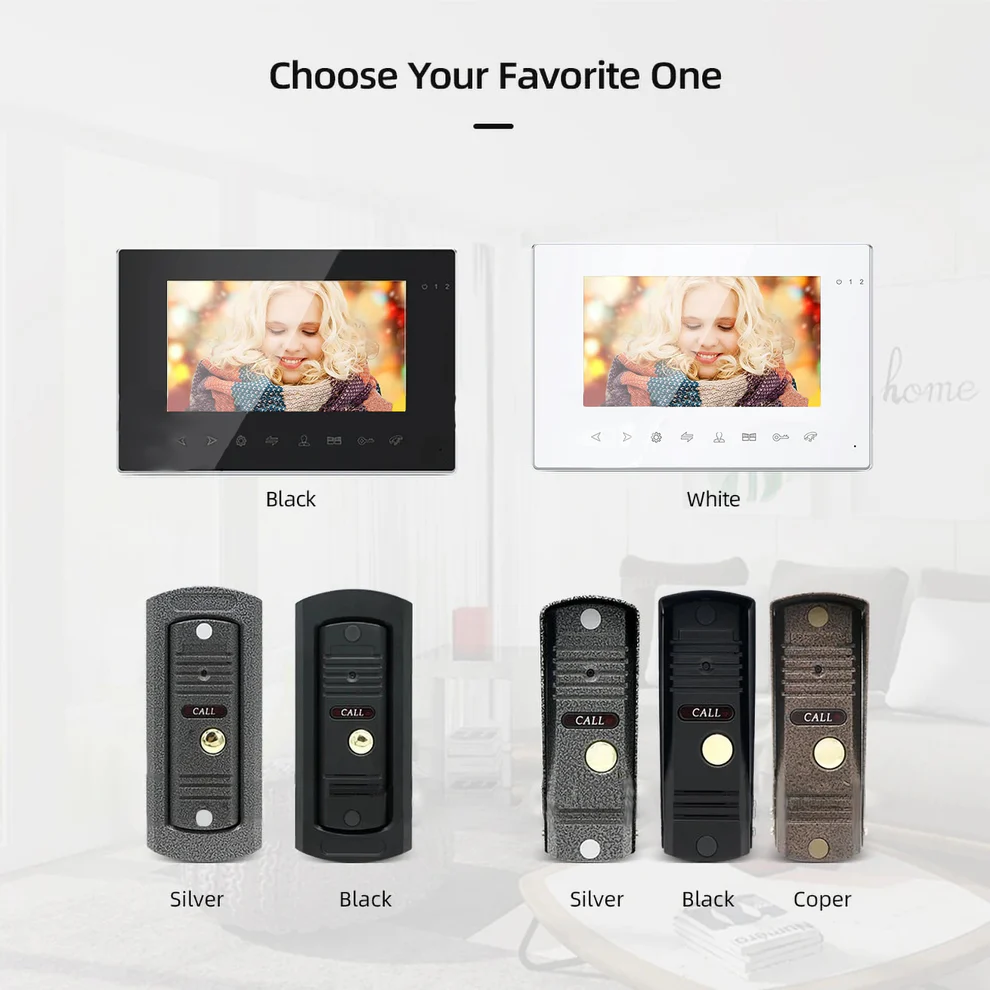

2 Different Monitor Panel & 3 Different Door Camera
There are two different color monitor panels: White and Black. Three different color door cameras: silver, black, and copper. Please select your favorite one.
|
Excellent Performance
♦7"TFT Display, Plastic Case ♦Touch Button,MP4 Player, voice message supported ♦CVBS/AHD1.3MP input ♦Room to Room Intercom ♦Door Answering, Monitoring And Unlocking ♦Adjustable Color, Brightness and volume ♦Support External Max.32GB SD Card. ♦Customize Ringtone and wallpaprer |
|
ndoor Monitor |
Model |
86714EM |
|
Product Type |
HD 720P CVBS Video Input |
|
|
Monitor |
7" TFT LCD |
|
|
Resolution |
1024(H)*3(RGB)*600(V) |
|
|
Standard |
PAL/NTSC |
|
|
Calling Mode |
Two-way Intercom |
|
|
Power Consumption |
500mA Max. |
|
|
Power Supply |
External power DC12V |
|
|
Work Temperature |
0℃ + 50℃ |
|
|
Installation Way |
Surface Mounting |
|
|
Memery Capacity |
Max. 1x32GB Class 10 TF Card, |
|
|
Input Video Signal |
CVBS/AHD2.0 |
|
|
Motion Detection |
Yes |
|
|
System |
Support 6 Indoor Monitor + 2 Call Panel + 2 Camera |
|
|
Function |
Unlocking/Monitoring/Intercom Calling/Transfer Calling/ Recording |
|
|
Advantage |
Wiht Photo Frame/MP3 & MP4 Player/ Clock & Voice Message/ Backgroud Music |
|
|
EM as suffix-sensor's key + memory |
||
|
Outdoor Unit |
Model |
84201AHD |
|
Camera Sensor |
720P |
|
|
2.8mm lens |
||
|
View Angle |
110º |
|
|
LEDs For Night LED |
IR LEDs(120º) |
|
|
Power Consumption |
200mA Max. |
|
|
Power Supply |
Supplied from indoor monitor |
|
|
Material |
Aluminum alloy panel |
|
|
Waterproof |
IP65 |
|
|
Operation Temp |
-40℃ +50℃ |
|
|
Istallation |
Surface mount |
|
720P/1.0MP High-Resolution Camera With IR Leds, View More Clearly.
720P High-Resolution HD CMOS, See Sharper And More Details Than CVBS 800TVL or 1200TVL cameras. With IR leds, you can see a clear picture even at night without lights.

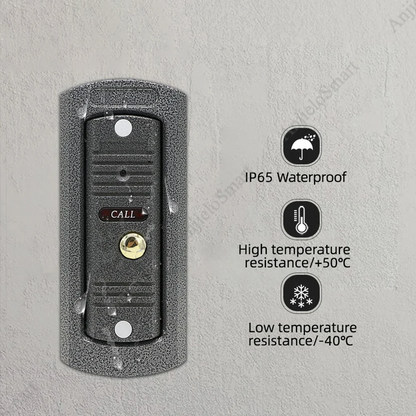

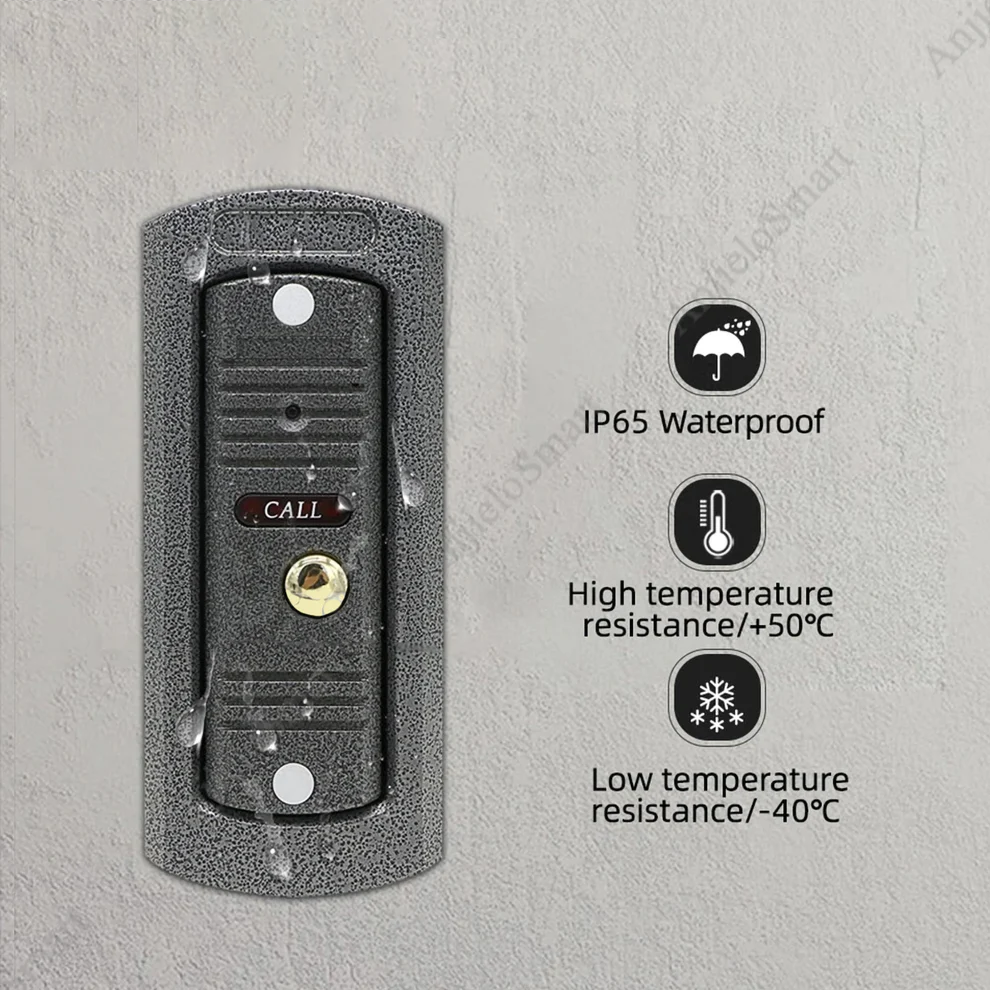

IP65 Waterproof, Anti-thunderstorm Design
The Outdoor Camera Is Equipped With Rubber Gasket Ring, There Is No Way To Leak. It Also Can Works Well Even In Bad Weather.
One Outdoor Panel, Three Installation Methods !!!
The whole package, includes a rainproof cover, corner bracket, and embedded mounting bracket, suitable for different installation environments.
System Connection Wiring Diagram
Maximum support connects with 2 outdoor call panels + analog 2 cameras(or PIR detectors) + 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).
Packing List
1X Indoor monitor ( with mounting plate , user manual, accessory bag )
1X Indoor monitor power adapter ( We will send the applicable power adapter according to your country )
1X Outdoor HD 1.0MP door camera ( with rainproof cover, corner bracket, embedded mounting bracket and accessory bag )
1X 32Gb Class 10 SD card ( For option )
Tips: There are 4 types of power adapters, We will send the applicable power adapter according to your country, if you have a special order, please contact us for free.
