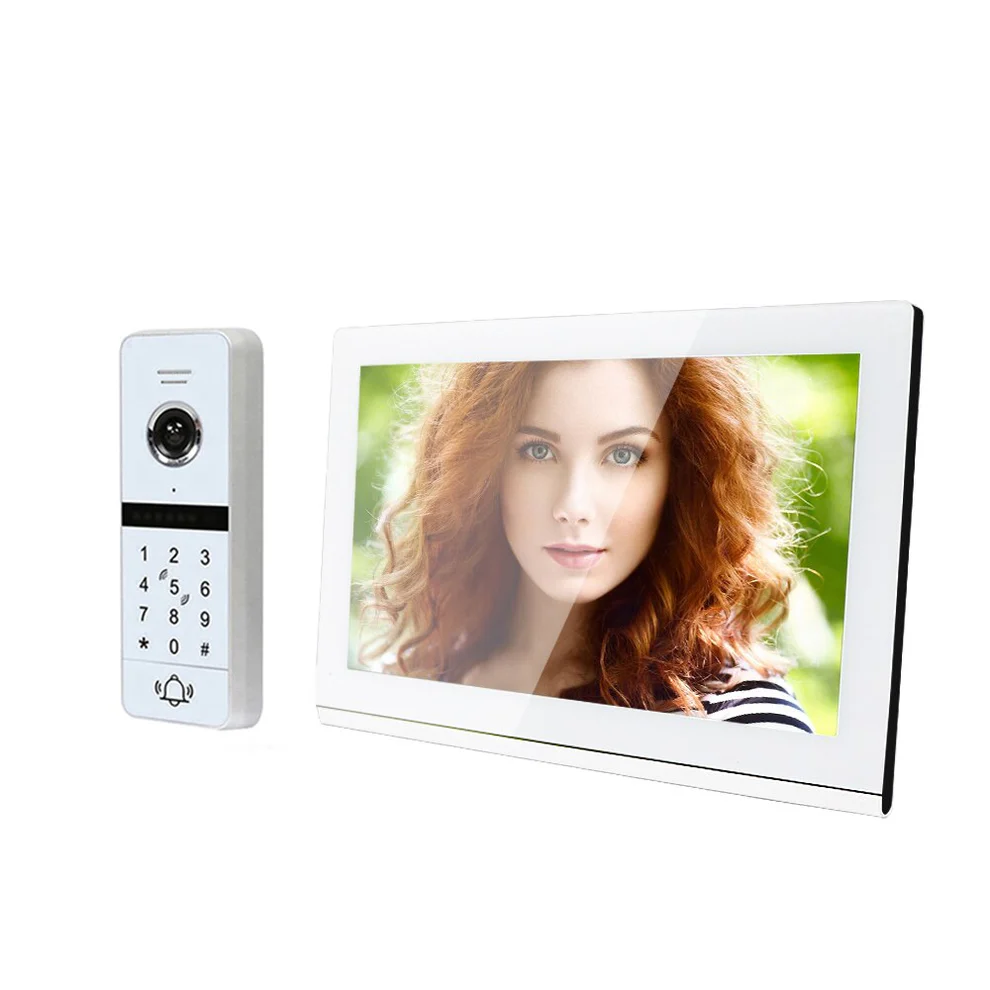

Tuya 10 inch WiFi Wireless Video Intercom System Smart Home 1080P Night Vision Doorbell Camera Video Porteiro with Monitor for Home

TUYA Smart WIFI 10 inch Full Touch Screen Video Door Phone Intercom IP65 Weatherproof 1080P HD Outdoor Doorbell Home Safety Remote Monitor

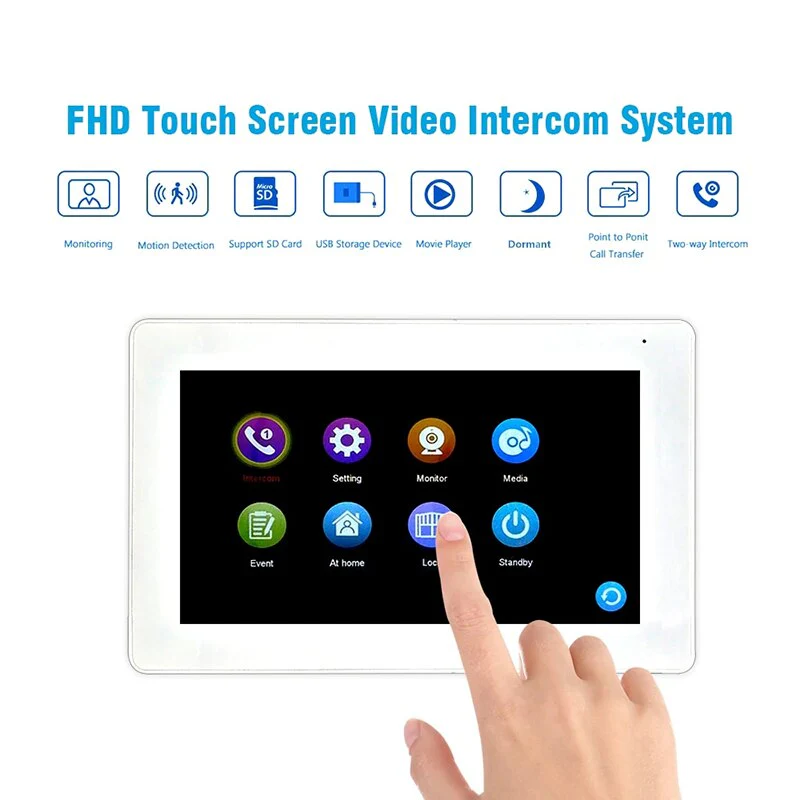

10 inch Full Touch Screen
Built with advanced system and 10 inch 1080P resolution touch screen,simple and comfortable design interface, easy to operate all settings with your finger.

10" Indoor Monitor :

Model:86121

Monitor:10" TFT touch screen

Dimension:160mm*260mm

Resolution:(1024H)*3(RGB)*600(V)

Memory:Built-in Memory Can Save 86 Pictures, Support External Max.128GB SD Card (Not included)

Intercom Mode:2-way intercom

Leave Message Time:30s/60s/90s optional

Conversation Duration: Max.180s

Ringtone:Customized supporyed

Power Supply:Supplied by External

Power DC 12V; Standby:3W; Working:5W

Material:Wire Drawing Arcylic Case

Operation Temp:-10°C +60°C

Installation:Surface Mounted

Multi-languages OSD Menu

Thirteen system languages supported: English, Russian, Polish, French, Italian, Ukrainian, Arabic, Hebrew, Lithuanian, Dutch, German, Spanish, Slovak

Clock Mode

1.The monitor is not only an indoor monitor, but also a clear electronic clock and an elegant artwork.

2.When the operation is over, it will stand by in clock mode for 1 minute, and then automatically turn off to protect the screen life.

3.Elegant artwork.The design is simple and elegant body ,The metal plate is exquisite and durable.

4.Memory card: maximum support 128g (need to order separately)

1080P Outdoor Doorbell:

Camera Sensor:1080P
View Angle:130º
Power Supply:Supplied from indoor monitor
Material:Aluminum alloy panel
Waterproof :IP65 Weatherproof
Istallation :Surface mount

App Notification Push

With the latest technology,when visitor press the doorbell,your phone will receive the APP notification, you can see,hear and speak to anyone at your door, even remote unlock via your smartphone in everywhere,No matter where you are, you can remotely access the camera to see live streaming and stay connected

Smart Motion Detection

After setting the detect area for the doorbell camera,If there has something move in front of the doorbell ,the device will start a recording or capture a picture,even though nobody press the doorbell automatically ,start a recording or capture a picture,you can check the recorded video or screenshot on the device, but the premise is that the SD card is plugged into the device

Understand your smart intercom control

Based on the safe and easy-to-use design, the latest wireless monitoring technology is used for remote unlocking, monitoring, two-way communication, video recording and more, Easy access to visitors via APP. APP supports IOS/Android system smart phones and tablets

Product Appearance:

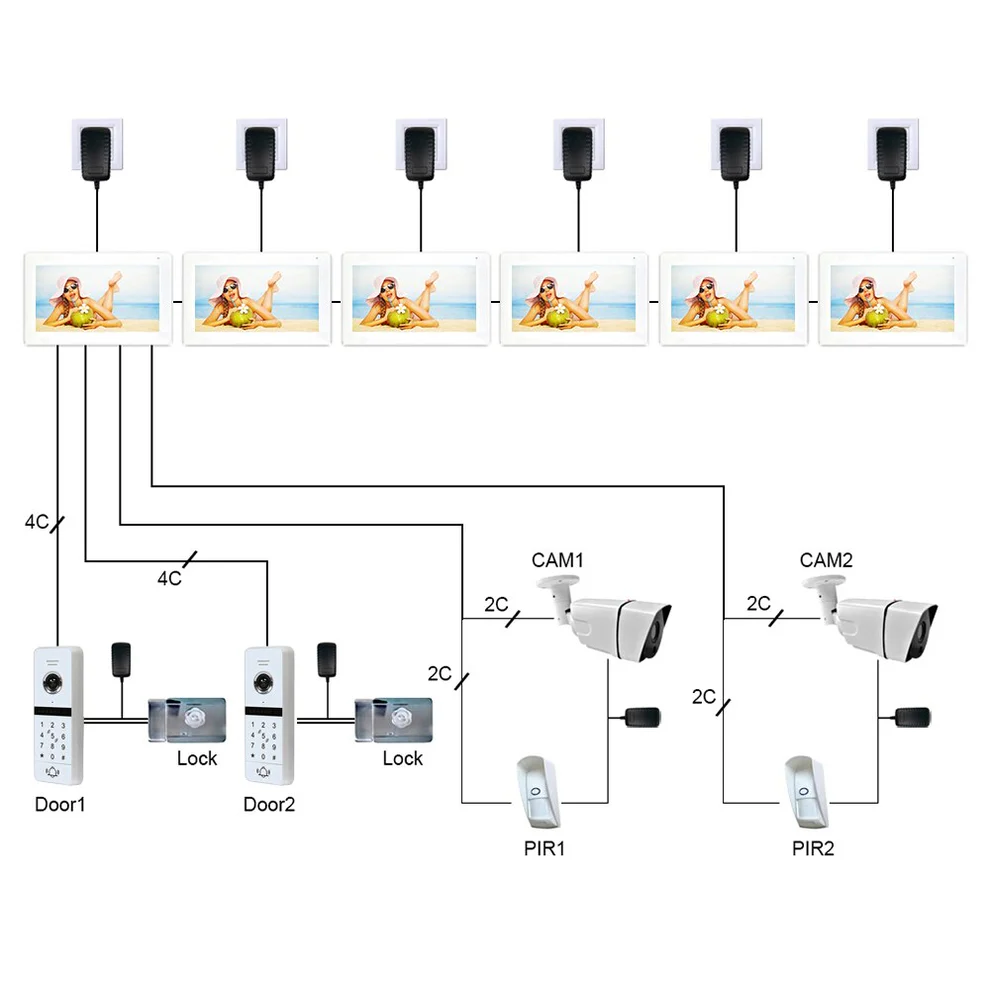

Connect diagram (the connection method is for reference)

Maximum support connects with 2 outdoor call panels + analog 2 cameras(or PIR detectors) + 6 monitors in one system. PIR sensor and CCTV camera installed to work together can alarm and video recording (Camera with individual power).
