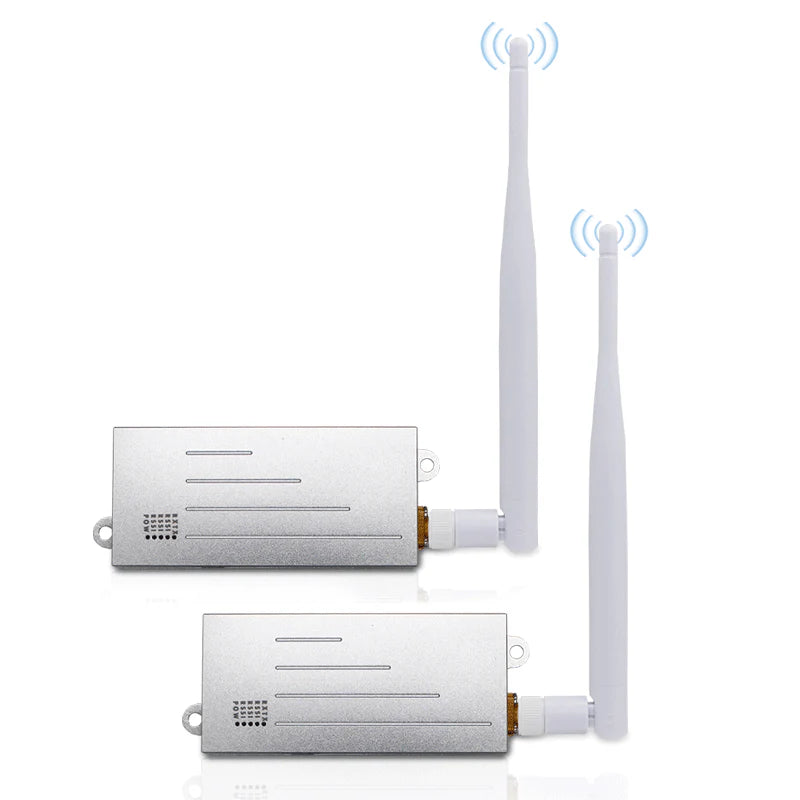

    ANJIELO SMART metal WiFihalow bridge enhanced versionLonger distance faster speed and stronger penetration
ANJIELO SMART metal WiFihalow bridge enhanced versionLonger distance faster speed and stronger penetration
Regular price

            $150.00 USD


          Regular price






          Sale price

          $150.00 USD



        Unit price


          /
           per




    Shipping calculated at checkout.
Couldn't load pickup availability
Wifi Halow enhanced version of image transmission module for drones 3km long distance transmission module wifi HaLow wireless bridge



802.11 AH-WIFI HALOW frequency setting instructions

Notice:We provide 3 frequencies USA: 902-928MHz EU: 863-868MHz Japan: 916.5-927.5MHz. We will send the wifi Halow extender with the corresponding frequency according to the country/region where the customer orders. If you have special frequencies, please contact us
Product specifications and parameters:
| Parameter | Description |
| Communicationprotocol | IEEE802.11ah |
| Frequency range | 902MHz-928MHz |
| Communication bandwidth | 8MHz |
| Data rate Max | 16Mbps |
| Receiving sensitivity |
1M PPDU MCS=10 -105dbm; 8M PPDU MCS=0 -95dbm; 8M PPDU MCS=7 -81dbm  |

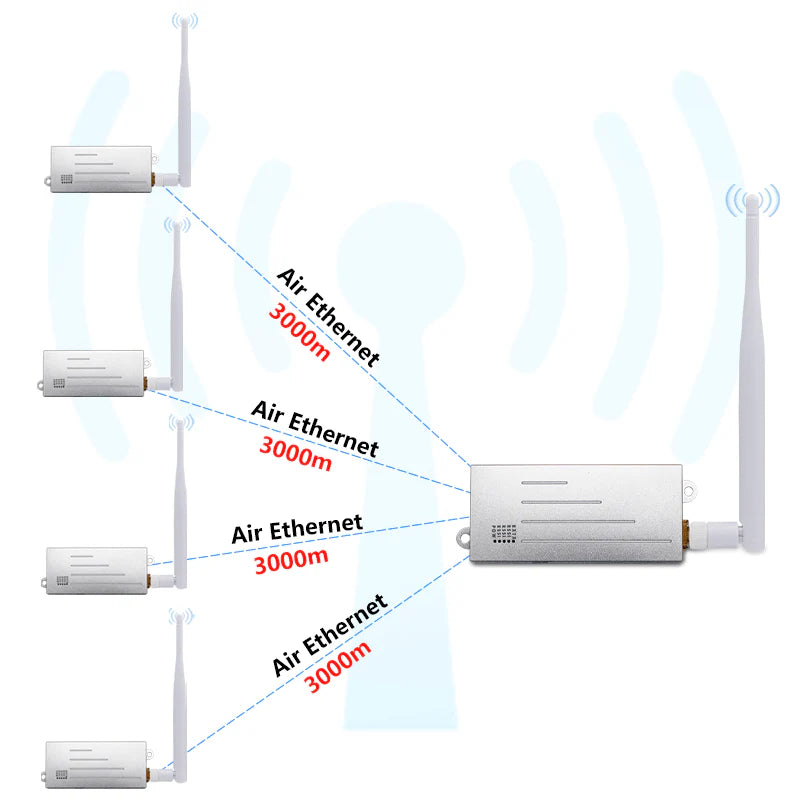

| Number of supported network nodes: | up to 8 access points |
| Transmit power | 33dBm 2W |
| Debugging method | BPSK, QPSK, QAM16 or QAM64 |

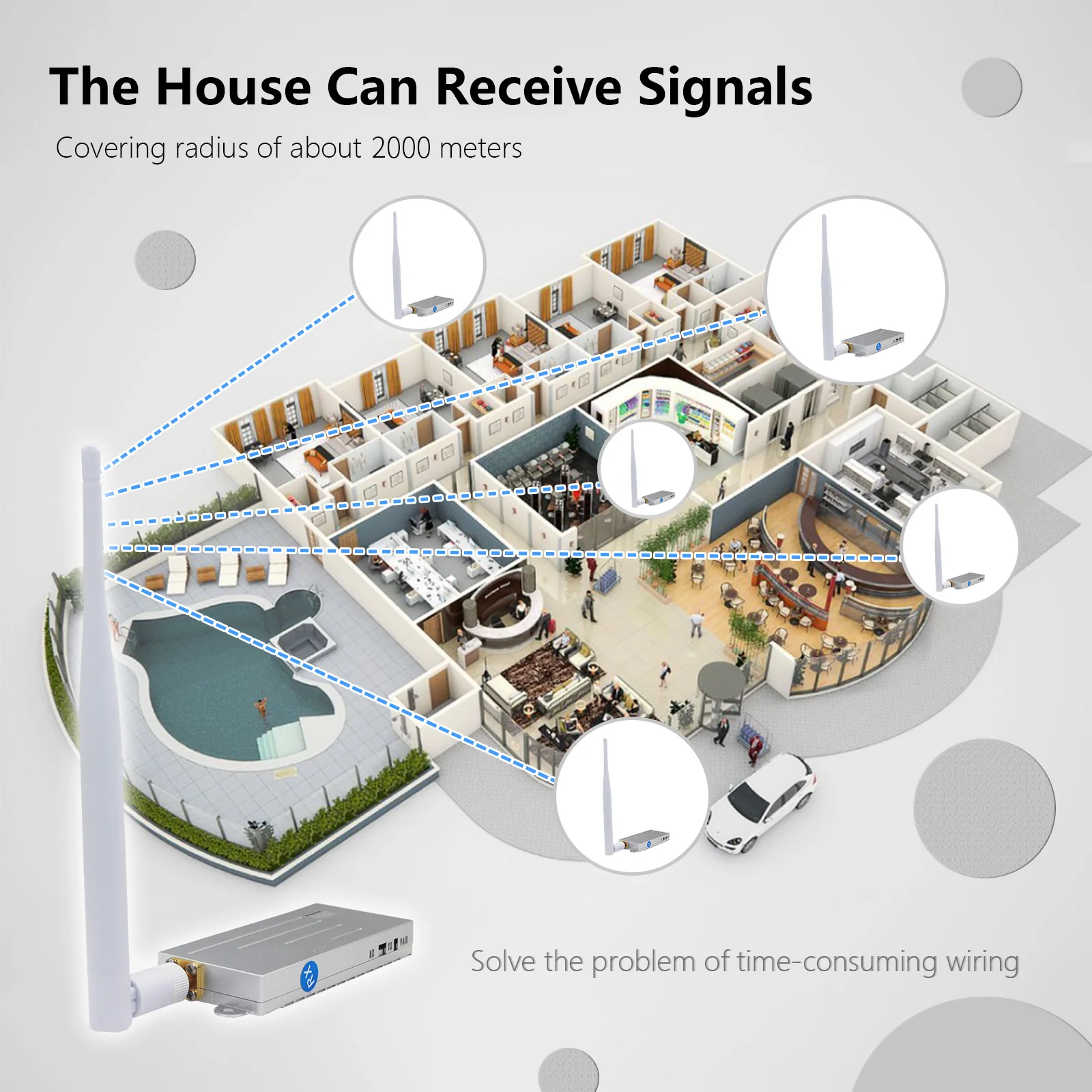

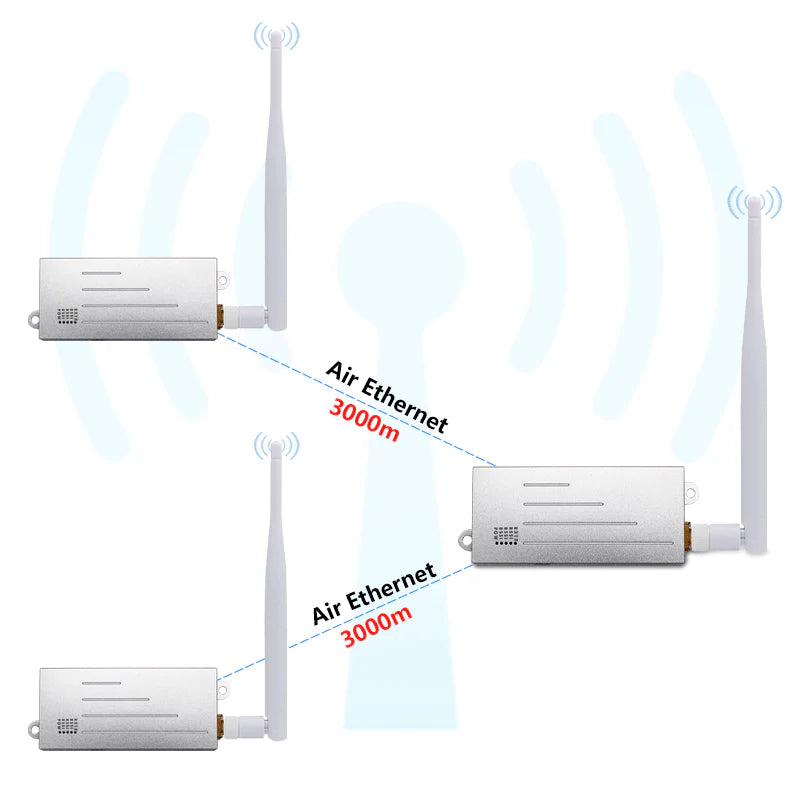

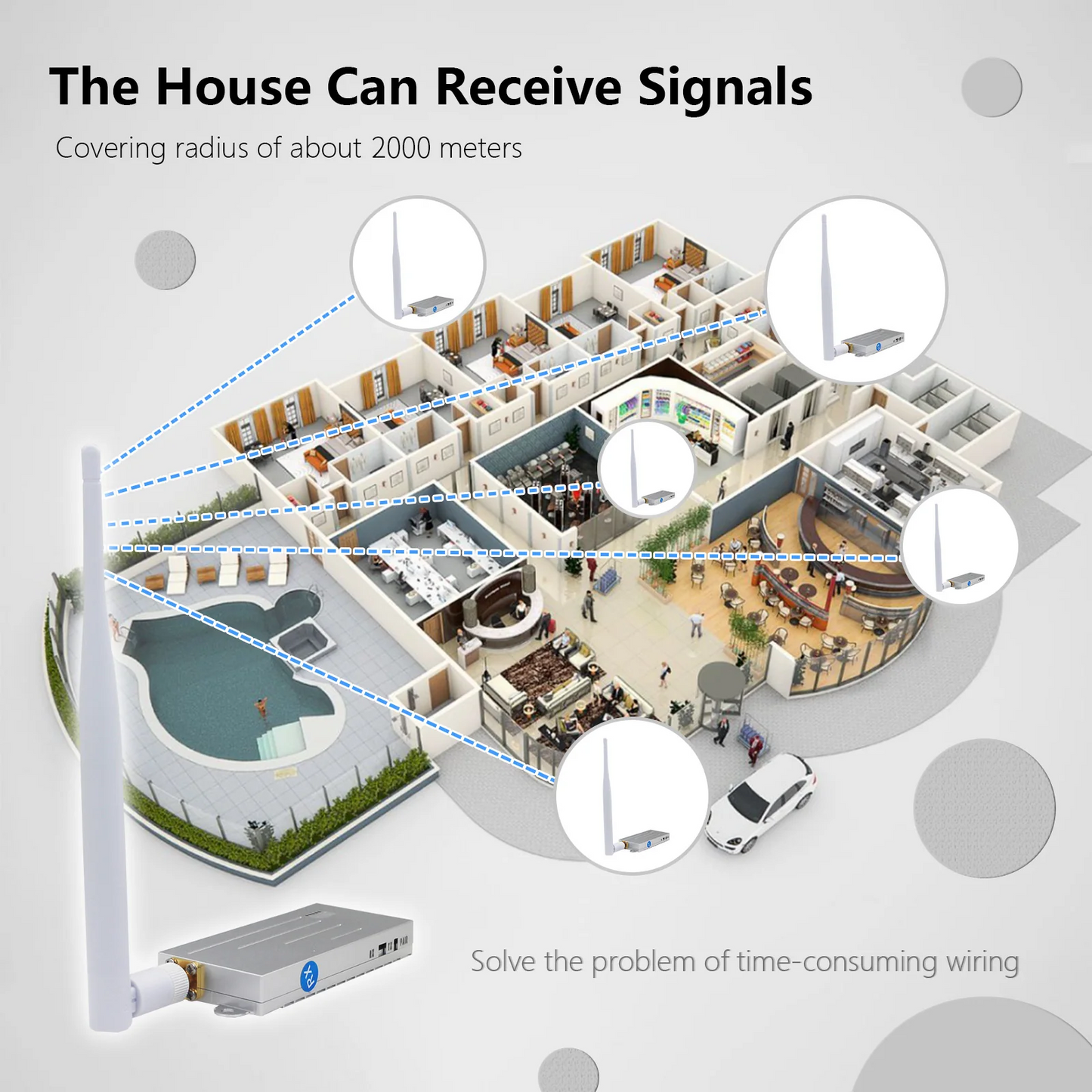

| Transmission distance | 3km with line of sight, 500 meters without line of sight |
| Security Specification | WPA2-PSK |
| Encryption method | AES |
| Network port | 10/100Mbps |
| Serial port | TTL level |
| Serial port baud rate Default | 115200 |
| Power supply | DC12V/1A |
| LED light indication |
Power Indicator Central point (AP) and access point display Signal strength indicator  |
| Antenna interface | SMA external thread internal hole |
| Input voltage | 12V1A |
| Maximum current | 0.6A/12V (frequently transmitted during full time slot) |
| Average working power consumption | 5W (normal working mode) |
| Operating temperature | -20℃~70℃ |
| Storage temperature | -30 ℃ ~ 80 ℃ |
| Working humidity | 10%~90% |
| Storage humidity | 5%~95% |
| Specifications | External 2db omnidirectional antenna |
| Length | 19cm |
| Product Size | 92x42x13mm (not including antenna) |
| Product weight | 62g |
