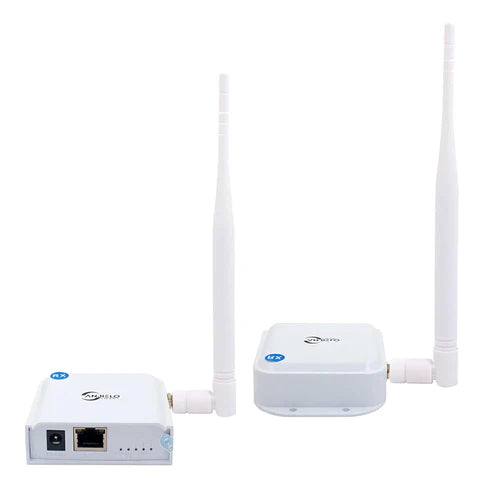

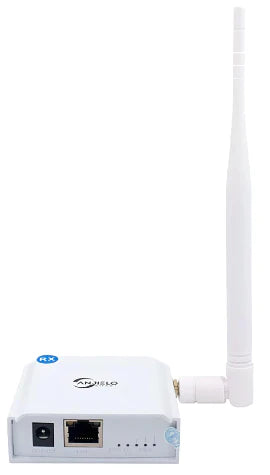

Anjielo WIFI HaLow Bridge Kit Outdoor Long Distance UP to 1000 meters Transmitter Receiver

Wireless Bridge Point-to-Point Long Range Wireless Access with 20DBi High-Gain Antenna,100Mbps 2.4G WiFi Bridge Supports 3000ft Outdoor Transmission Distance

802.11 AH-WIFI HALOW frequency setting instructions
notice:We provide 3 frequencies USA: 902-928MHz EU: 863-868MHz Japan: 916.5-927.5MHz. We will send the wifi Halow Bridge with the corresponding frequency according to the country/region where the customer orders. If you have special frequencies, please contact us

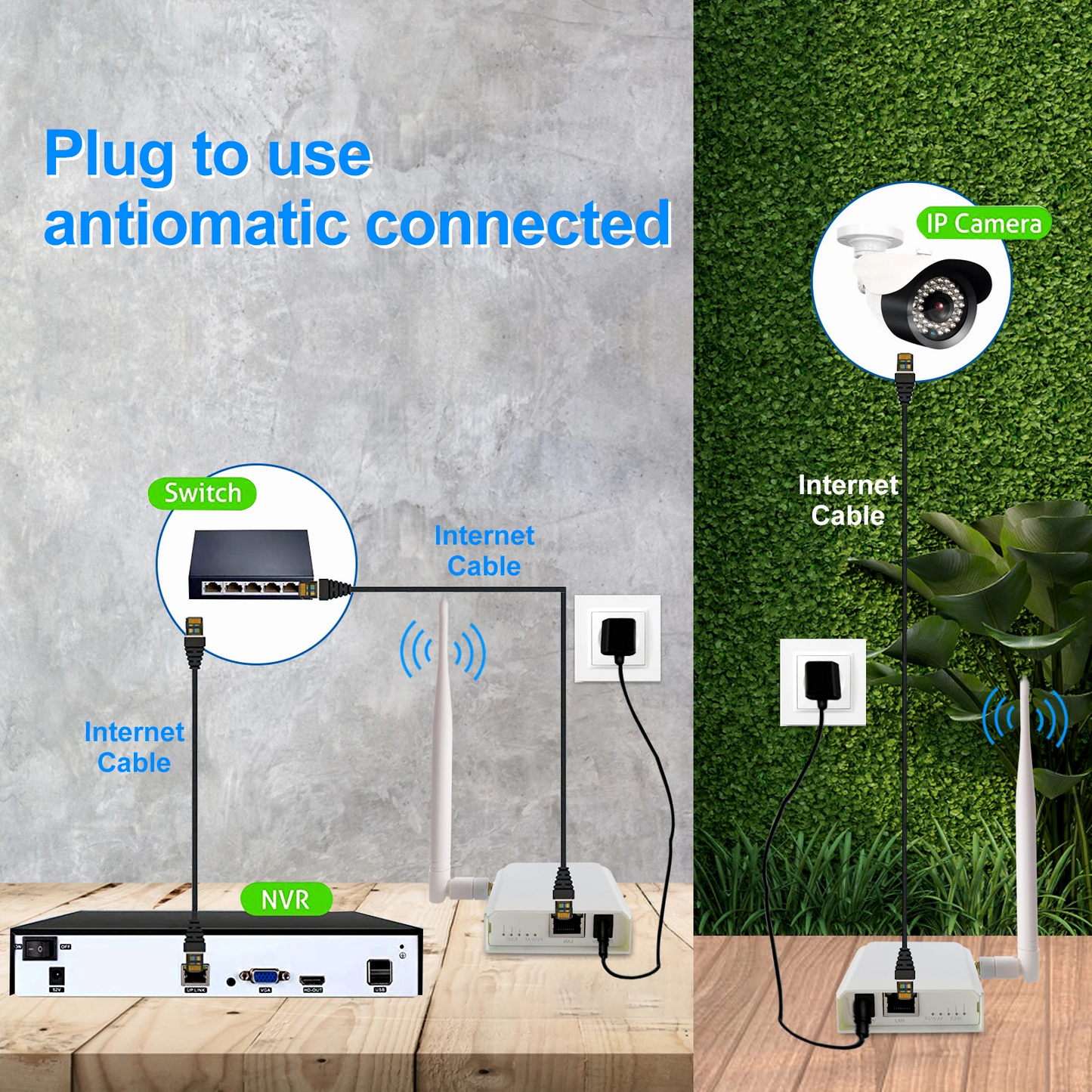

How to Use:

1. Plug in the antenna
2. Drill the hole and screw the Scenes Air on the wall
3. Plug in the power supply

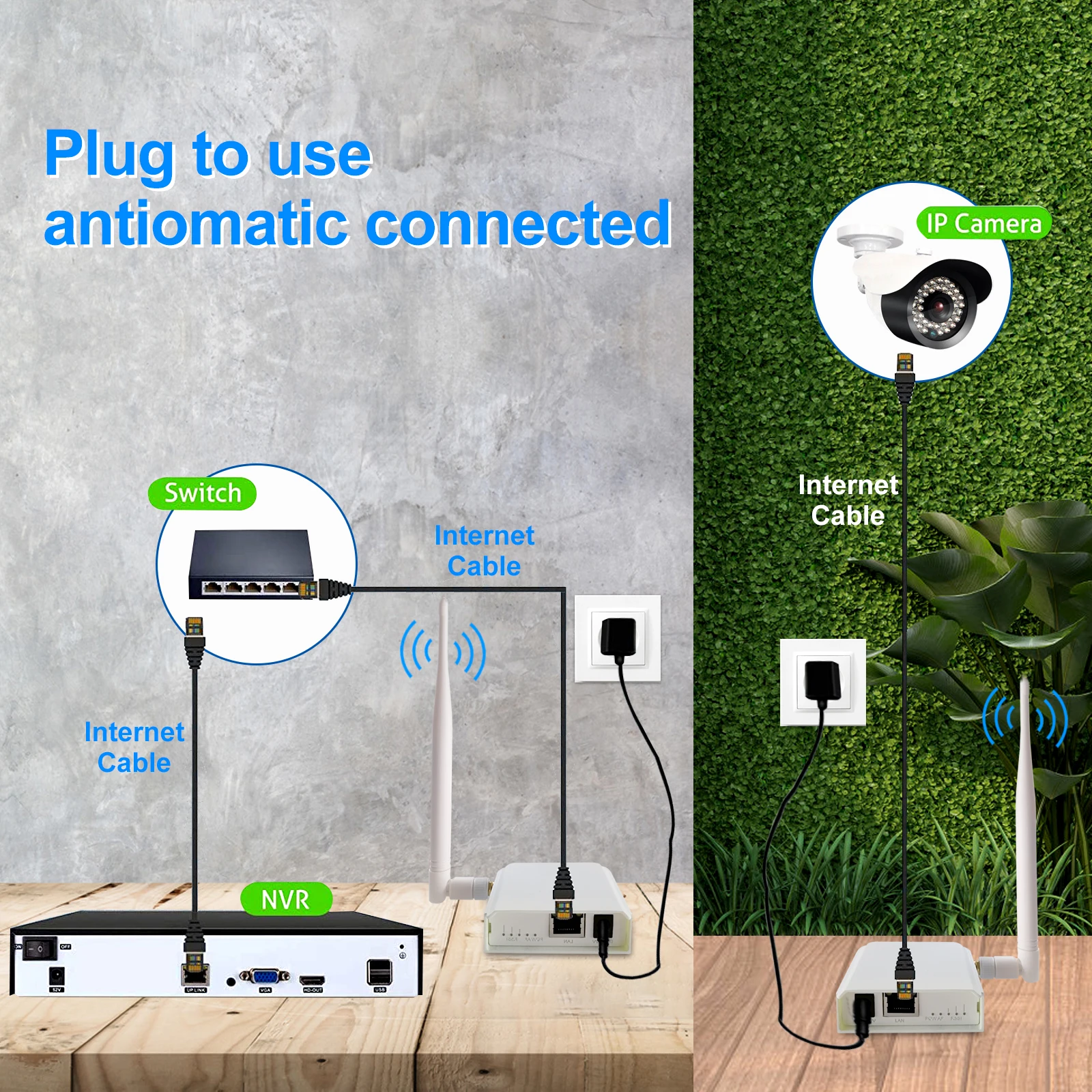

4. 1 Pack connects to the IP camera, the other pack connects to the network NVR, and the connection will be set up.

Note1:
Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

Note 2:
 Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

Description:
The Wi-Fi Halow standard network bridge works on the 902-930MHz(760-790MHz) frequency.
The model is dedicated to cost-effective solutions for wireless networking applications.
It is ideal for point-to-point signal coverage applications.
Professional performance, coupled with user-friendly design, makes the model an ideal choice for both business and home users. Compare with the traditional Network bridge or the CPE, the model is the first device with an Omnidirectional antenna for the 1Km signal transmission or strong penetration capability.

• Connectivity: Wi-Fi Halow security protocol
• Transmission Distance: Max 3000ft with the 1080P video
• Penetration Ability: 3-4 concrete walls
• Power: 5V/1A DC
• Operation Temperature: -5°F-120°F (-20°C-48°C)
• Size: 300mm*190mm*75mm
• Antenna: length 19cm with 2dbi gain
• Warranty: 12 Months of Parts and Lifetime Purchase Protection
• FCC ID: 2AXPI-TX-AH-R900ATR



Surveillance application just right:

• The device can provide a physical bandwidth of 150Kbps-32.5Mbps to support low-rate sensors, such as remote wireless access control systems, etc.
• The traditional 2.4GHz/5GHz wireless surveillance system can not avoid electromagnetic interference in complex environments, large path attenuation, and unsatisfactory non-visual distance transmission distance.
• This equipment can solve the problem of unsatisfactory transmission distance or frequent disconnection of equipment by installing AP101. At the same time, AP101 is compatible with wired/wireless packages, flexible configuration, and one-key pairing of AP/STA mode



     How to Use:

  1. Plug in the antenna
  2. Drill the hole and screw the Scenes Air on the wall
  3. Plug in the power supply
  4. 1 Pack connects to the IP camera, the other pack connects to the network NVR, and the connection will be set up.

  Note1:
  Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.

  Note 2:
   Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used.

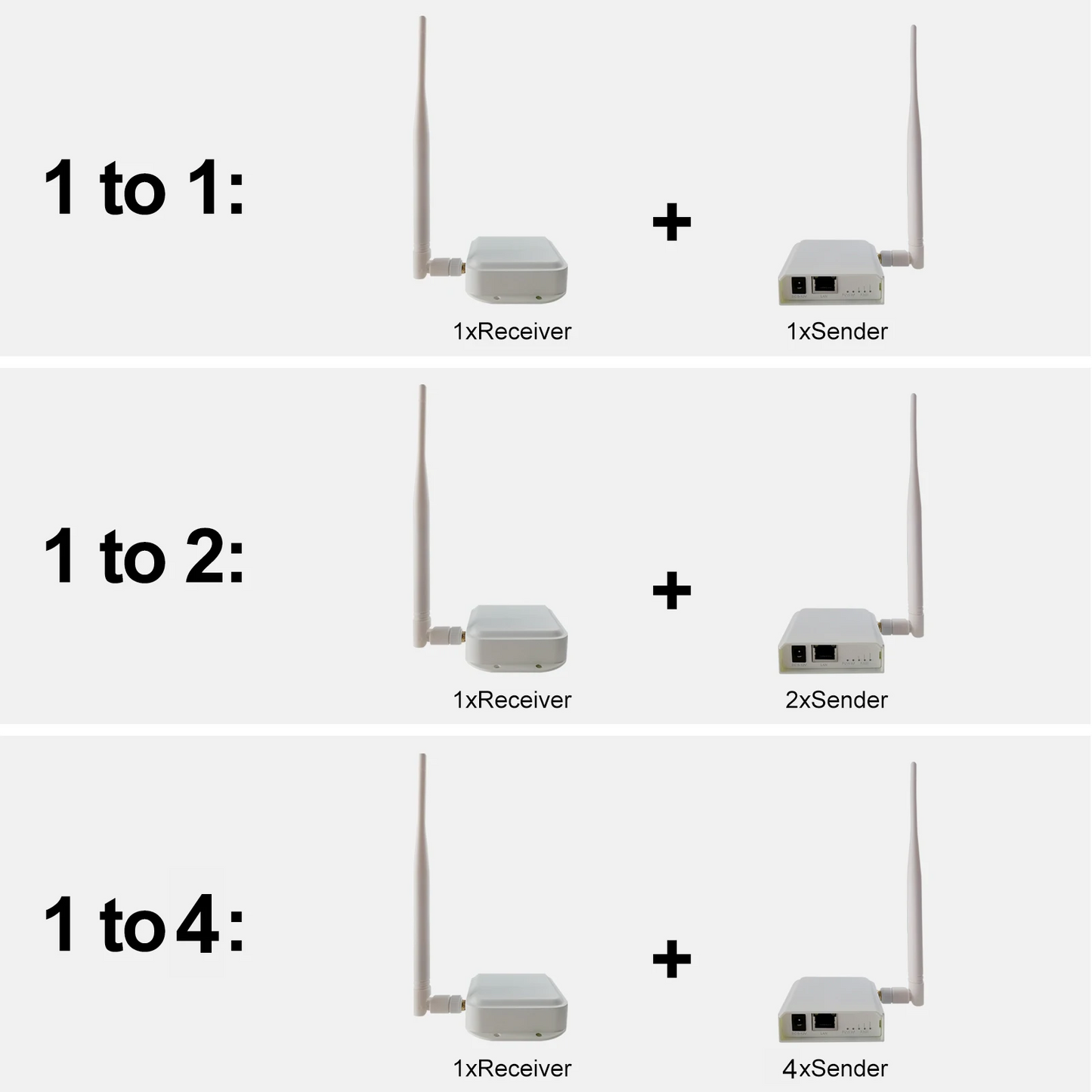

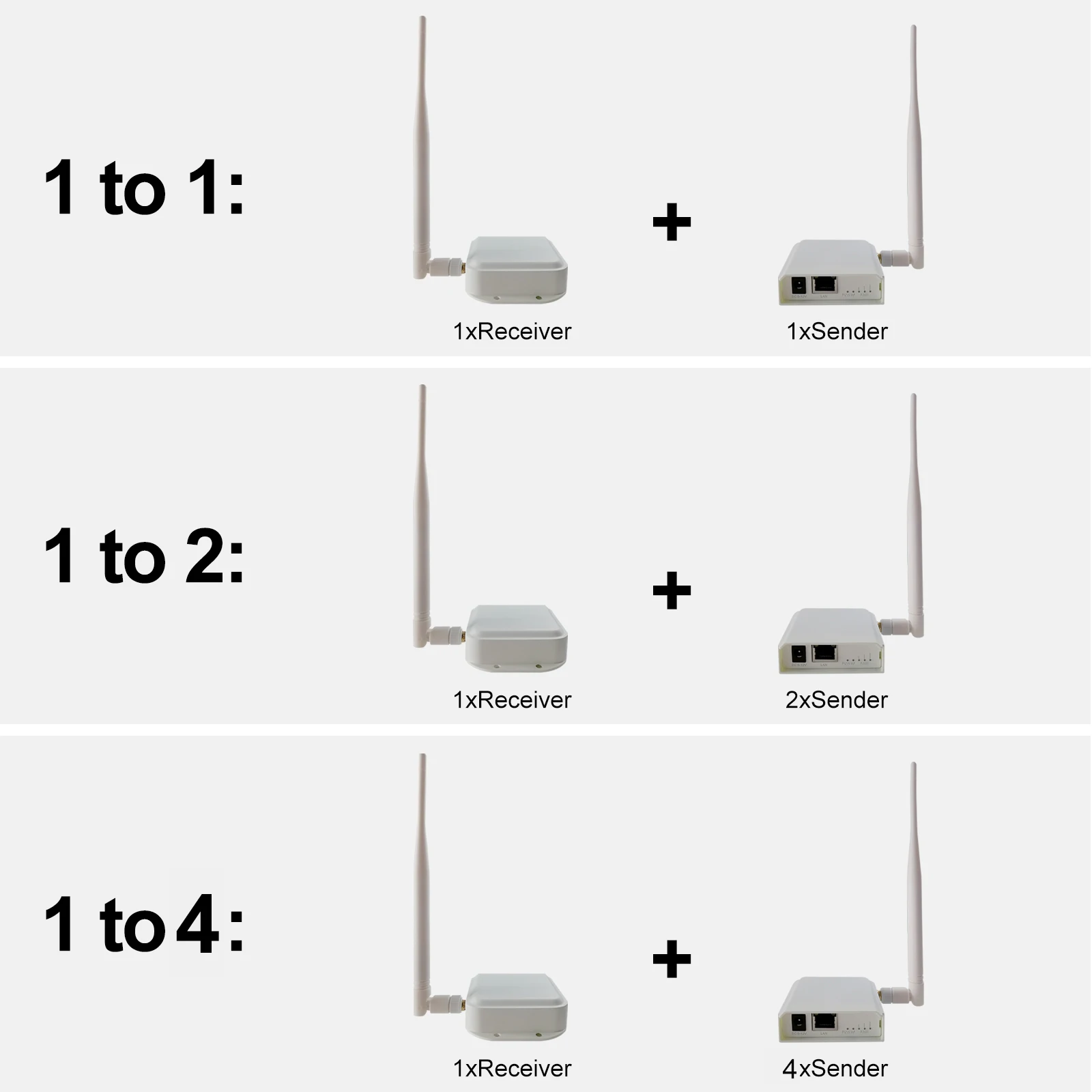

  Product List

  • A-Type (1 to 1)
  2x Ethernet Air
  2x Omnidirectional Antenna
  2x Power Adapter
  2x Ethernet Cable
  4x Screws
  1x User Manual

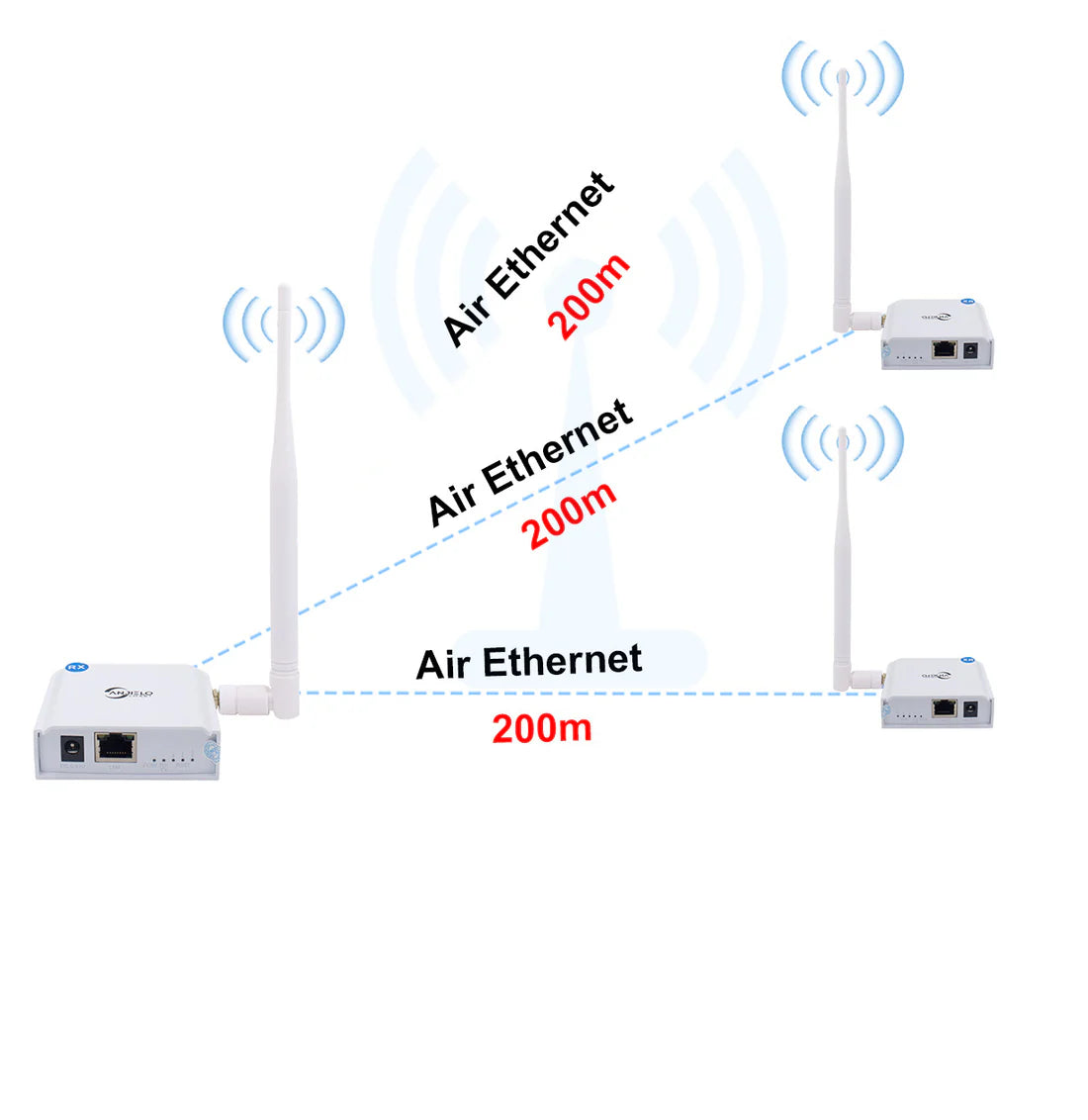

  • B-Type (1 to 2)
  3x Ethernet Air
  6x Self-tapping screw
  6x Colloidal particles
  3x Ethernet Cable
  3x 5V1A power adapter
  3x Omnidirectional antenna

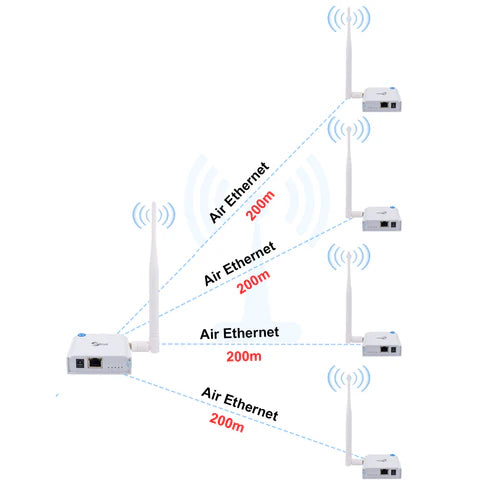

  • C-Type (1 to 4)
  5x Ethernet Air
  10x Self-tapping screw
  10x Colloidal particles
  5x Ethernet Cable
  5x 5V1A power adapter
  5x Omnidirectional antenna
