Access switch Push Touch Exit Button Door Eixt Release Button for access Control System

ternal dimensions: length 86x width 86x thickness 25 (mm)

Input voltage: DC12V

Standard structure: touch triggered organic glass

Electrical performance: 3a@12vdc

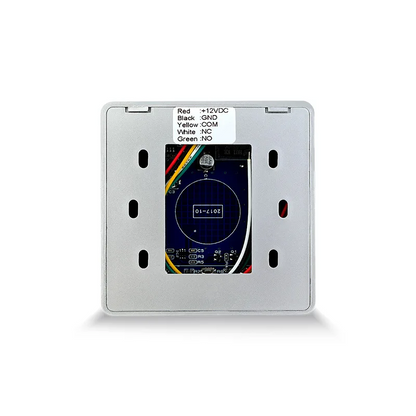

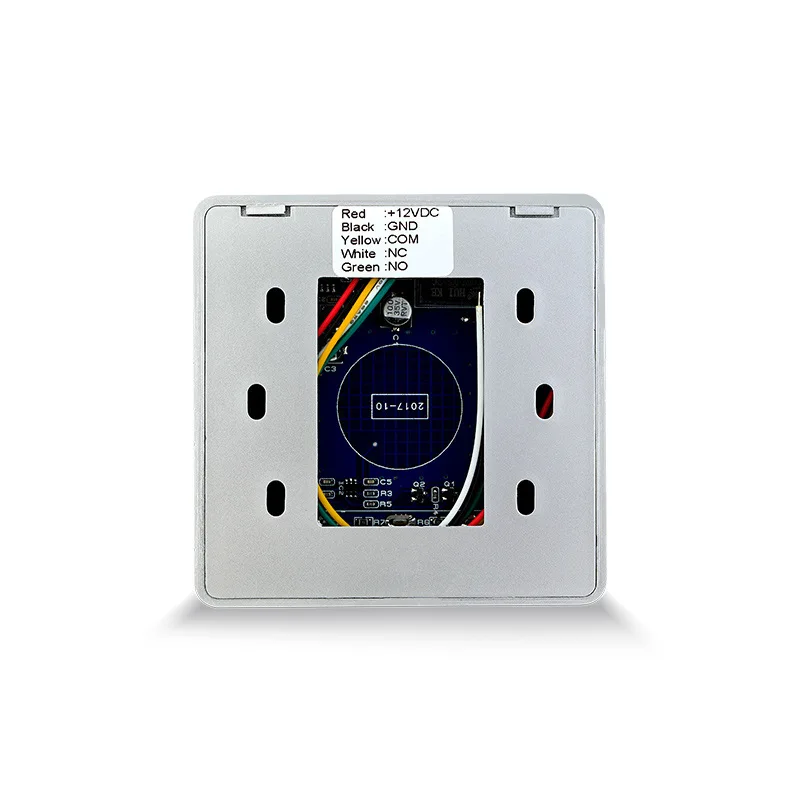

Contact output: NO \ NC \ COM contact

Durability test: Qualified after 500000 aging tests

Applicable type: Suitable for various narrow door frames

Applicable temperature: -20~+50 ℃

Applicable humidity: 0-95% (relative humidity)

Trigger device: touch

Blue light in standby mode

Red light when touching to open the door

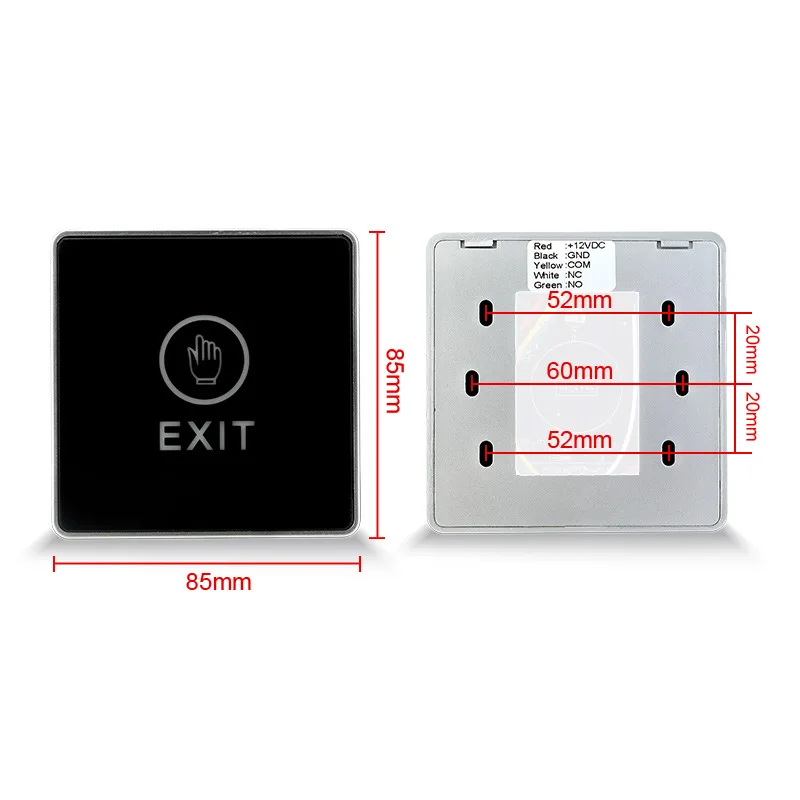

product size：
