7 inch WIFI Video Intercom for home indoor Monitor 4 wire Motion Detection Doorbell with 2-way audio Outdoor camera

New era smart home, Free tuya smart app, Operate and monitor more convenience anytime and anywhere

1. After downloading the Tuya app, you can connect the monitoring device to your smartphone in less than two minutes. The operation is simple and safe.

2.No matter where you are in your home or even abroad, you can easily answer the doorbell remotely and monitor the outdoor environment.

3. This trend of future technology, free your hands, and enjoy using a mobile phone to control the whole house of smart home appliances!

4. Support to insert 32G card for recording, screenshot, and upgrade.

Support mobile phone or tablet to download Tuya smart app；3G/4G/5G or wifi for multiple networks

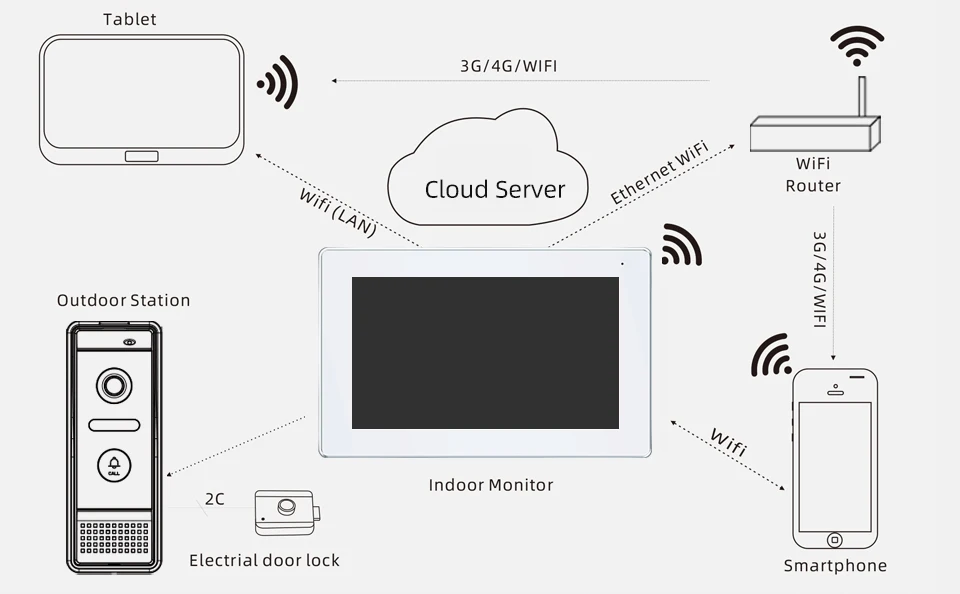

1. The Multi-dimensional connection can use to realize intelligent intercom on any device. Including app connect with the outdoor unit; Indoor unit connects with the indoor unit； Indoor connect with outdoor units; Indoor connect with outdoor units; Making communication fast and barrier-free.
2. Mobile phones and tablets only need to connect to 3G/4G/5G or wifi multiple networks to synchronize the indoor unit at any time.

Support mobile phones instead of surveillance machines to unlock

When the visitor presses the doorbell, the mobile phone and the monitor will receive the message synchronously. The host can use the mobile phone to monitor the outdoor environment and unlock the guest. There is a warm voice prompt for the door machine to unlock the door, giving guests a sense of intimacy。

After the host unlocks the monitoring machine, there will be a voice prompt when the door phone is unlocked: "The door is open, please come in !"

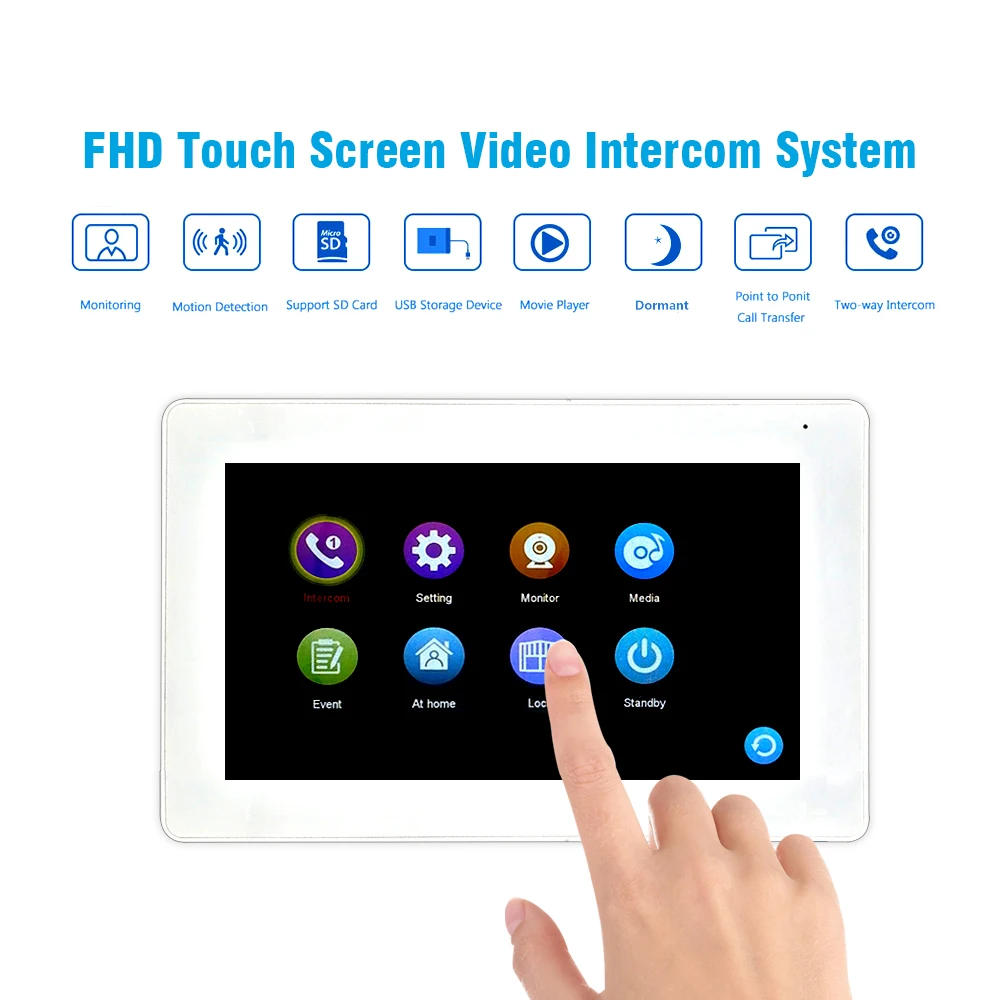

Touch screen system

The upgraded version of the touchscreen system is easier to operate, and children will also know how to use it.

A multi-purpose machine, clock mode

1. The monitor is an indoor monitor, a clear electronic clock, and elegant artwork.
2. When the operation is over, it will stand by in clock mode for 1 minute, and then automatically turn off to protect the screen life.
3. Elegant artwork. The design is a simple and sleek body, The metal plate is exquisite and durable.

Multi-languages OSD Menu

Based on the wide range of users worldwide, we have carefully edited 7 languages to meet the usage habits of customers in various countries.

◆English/Russian/ Polish/French/Italian/ Arabic/Ukrainian

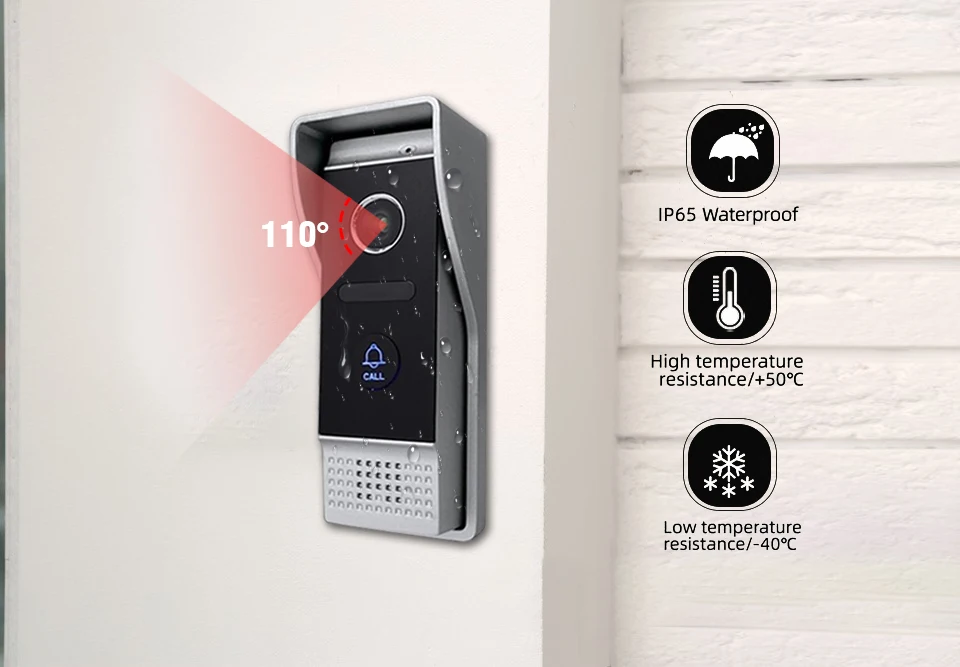

IP65 is waterproof, adapt to extreme temperature difference, not affected by weather



High-definition camera, night infrared monitoring

1). Infrared monitoring can clearly see the outdoor environment even at night, monitoring protects your safety.

2).1.0MP high resolution, which can monitor every detail more clearly.





Indoor Monitor ：

Model：86721

Monitor：7" TFT touchscreen

Dimension：120mm*190mm

Resolution：(1024H)*3(RGB)*600(V)

Memory： Built-in Memory Can Save 86 Pictures, Support External Max.32GB SD Card

Intercom Mode：2-way intercom

Leave Message Time：30s/60s/90s optional

Conversation Duration： Max.180s

Ringtone： Customized supported

Power Supply： Supplied by External

Power DC 12V; Standby:3W; Working:5W

Material： Wire Drawing Acrylic Case

Operation Temp：-10°C +60°C

Installation： Surface Mounted

System capacity:6indoor units+2outdoor units+2camera

Outdoor Monitor ：

Model：84203

Dimension：128mm*40mm

Camera Sensor：1.0MP

View Angle：110°

Night Vision： IR Light, 3pcs IR LEDs

Power Supply： Supplied From Indoor Monitor/ Internal power

Power Consumption：200mA Max.

Electronic Lock： Support

Accessory： Rain cover+angle bracker

Operation Temp：-40°C +50°C

Waterproof： IP65

Installation： Surface Mounted

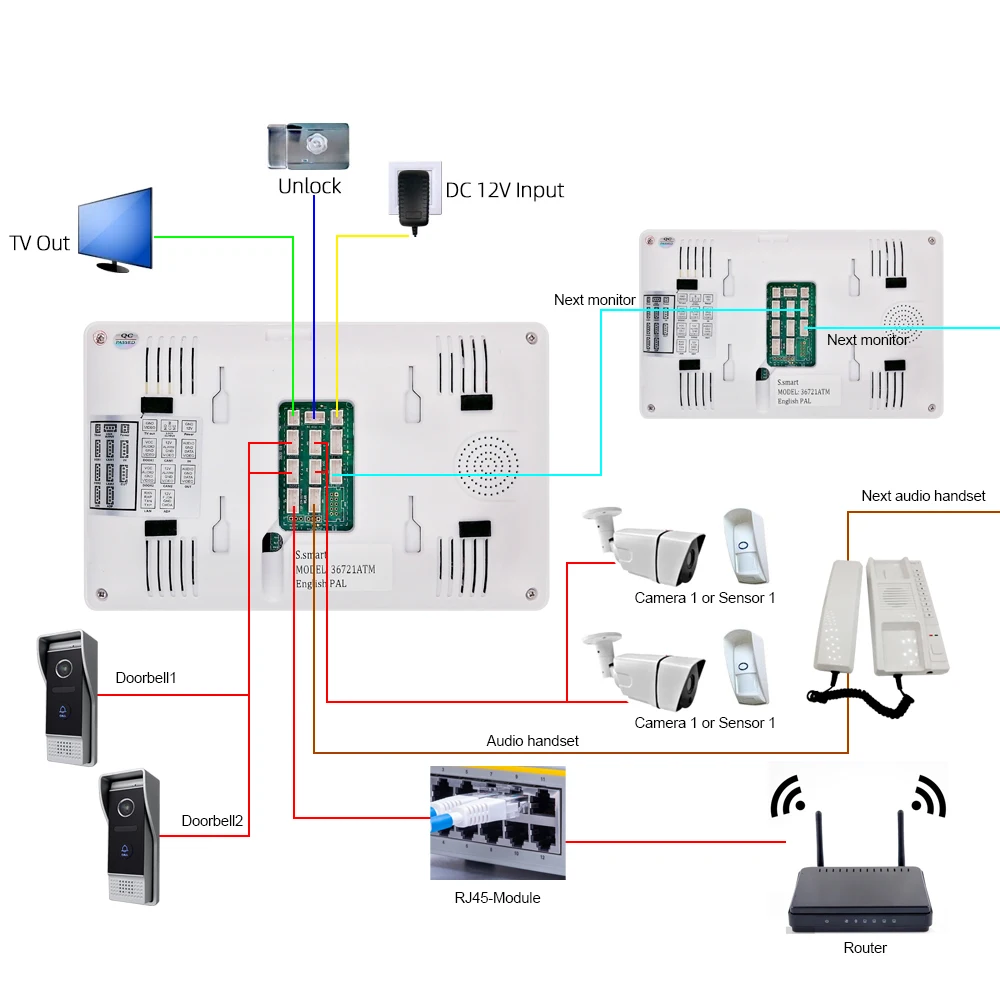

Connect diagram (the connection method is for reference)
