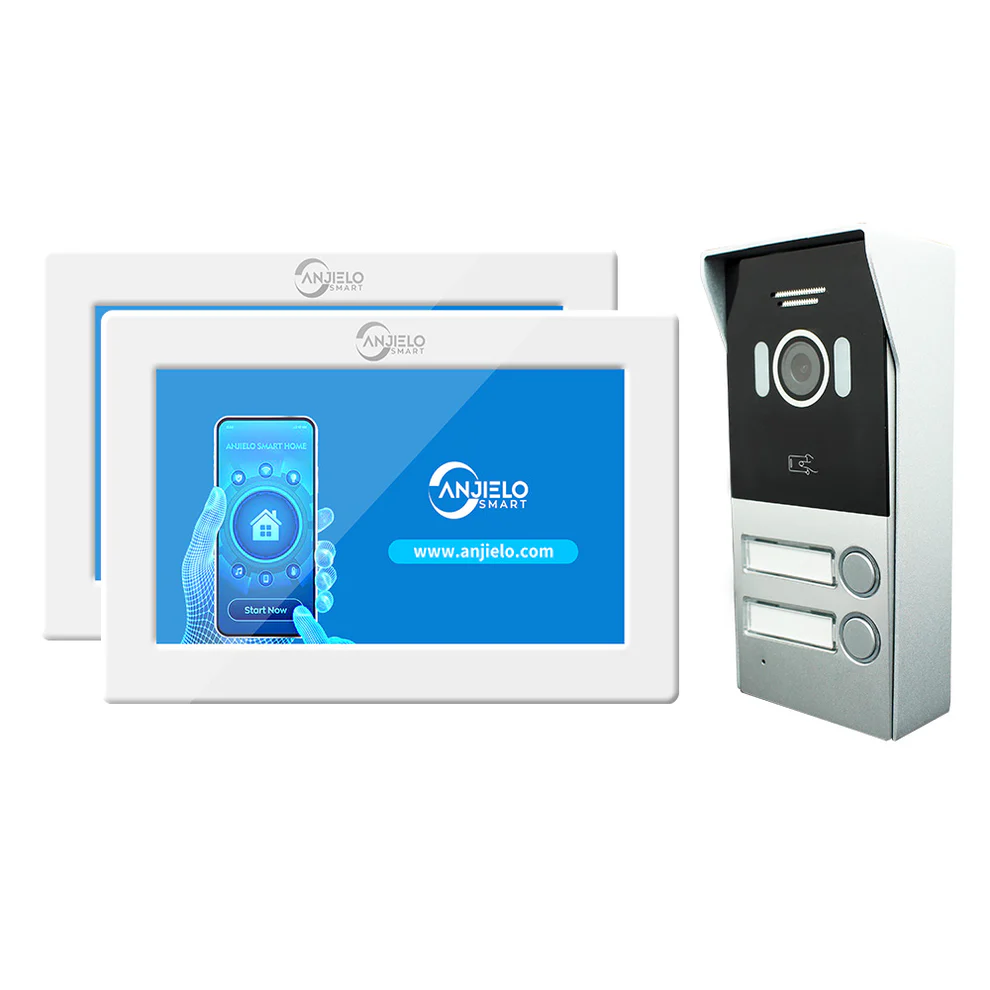

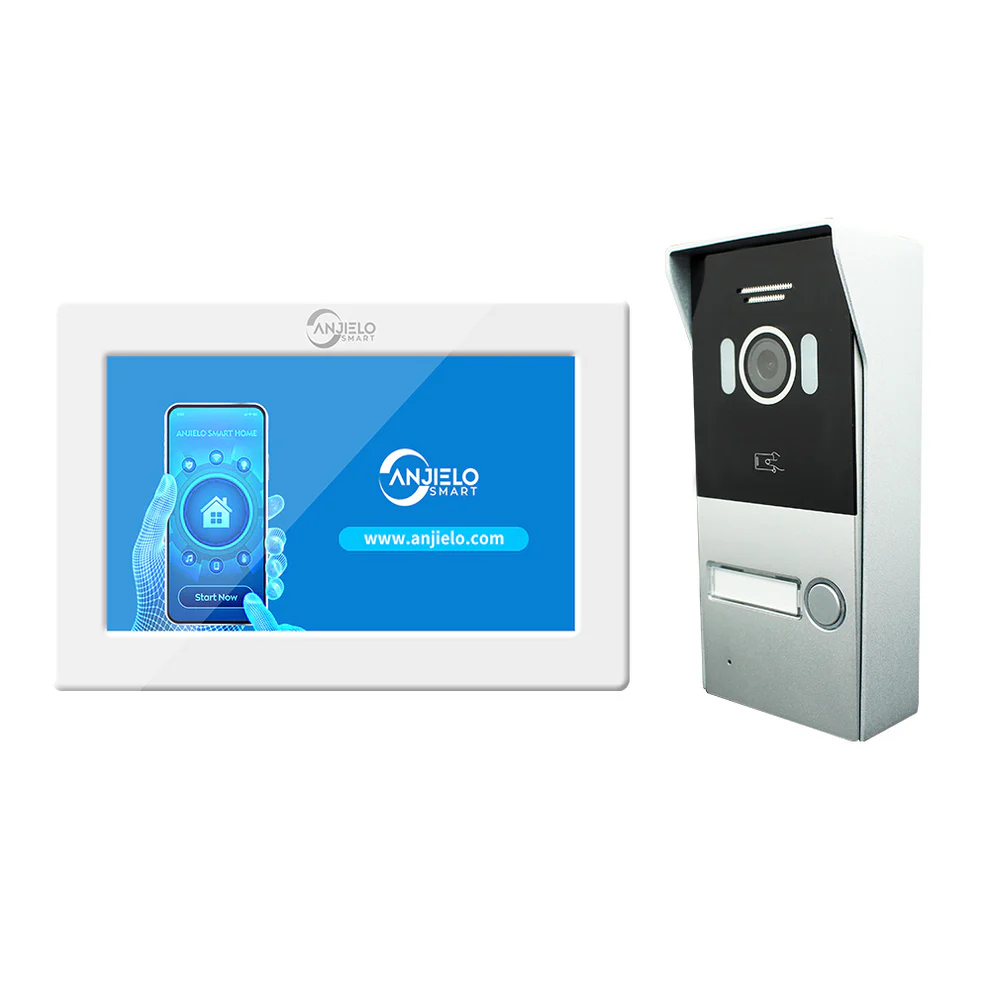

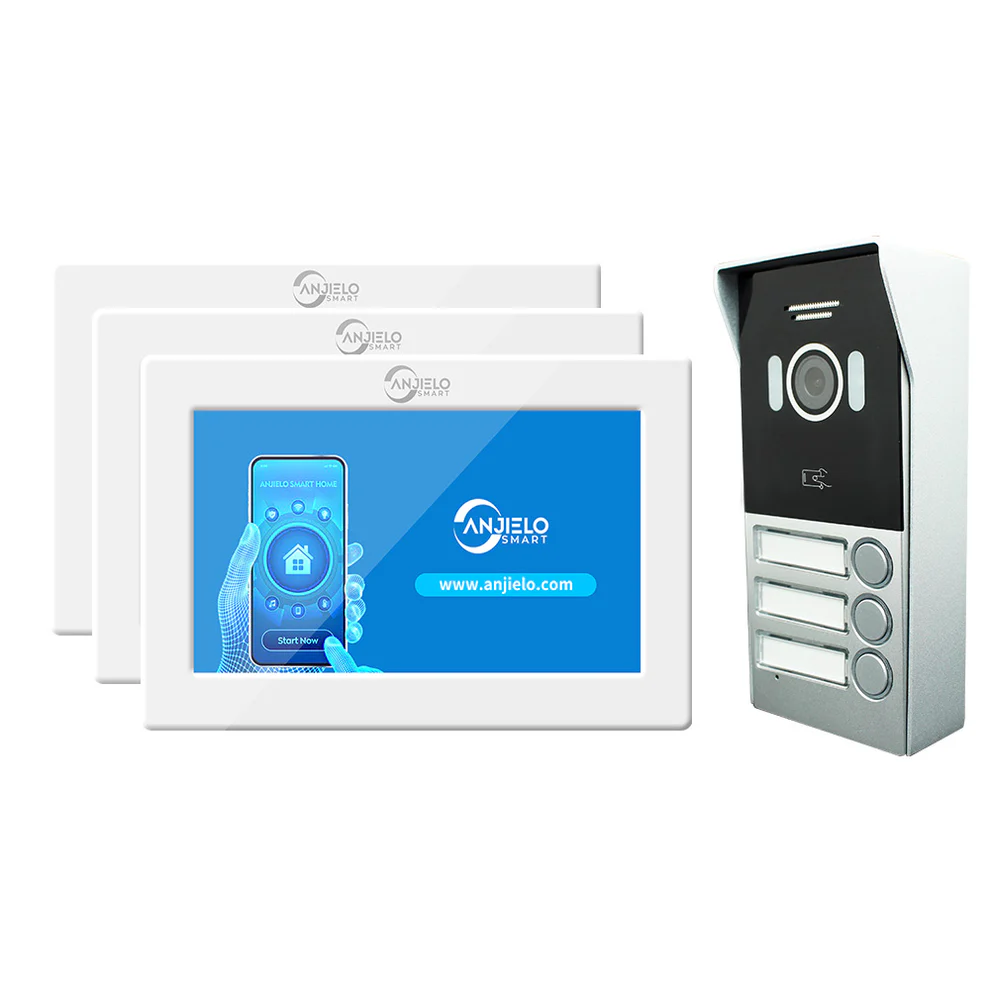

2 wire 1080P video intercom system with Tuya 7-inch touch screen monitor and support IP camera

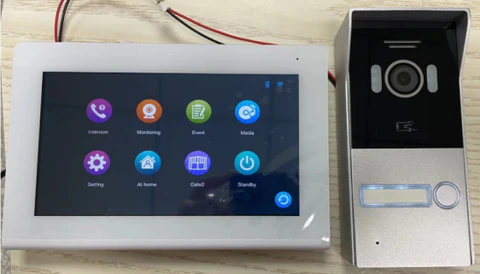

Tuya FHD 1080P 2 Wired 7 inch touch video intercom monitor
1. 2 wired BUS system, non-polarity terminal connection. The whole system is powered by 24V bus power supply
2. 7 inch TFT LCD screen, Support internal call,different residents can call each other
3. Intercom/ unlock/ real-time monitoring with outdoor unit, do not disturb function in deep night
4. The indoor monitor can be used as Admin monitor to broadcast to residents
5. Support 32G TF card to store pictures and videos;
6. Both indoor monitor and outdoor station can connect to lock, electronic lock and magnetic lock for option

Remote viewing and remote unlocking can be achieved on the Tuya APP, which is very convenient.

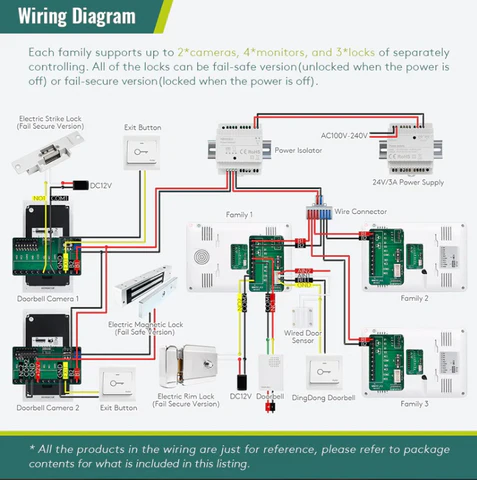

Schematic connection diagram：

packing list：
